Description

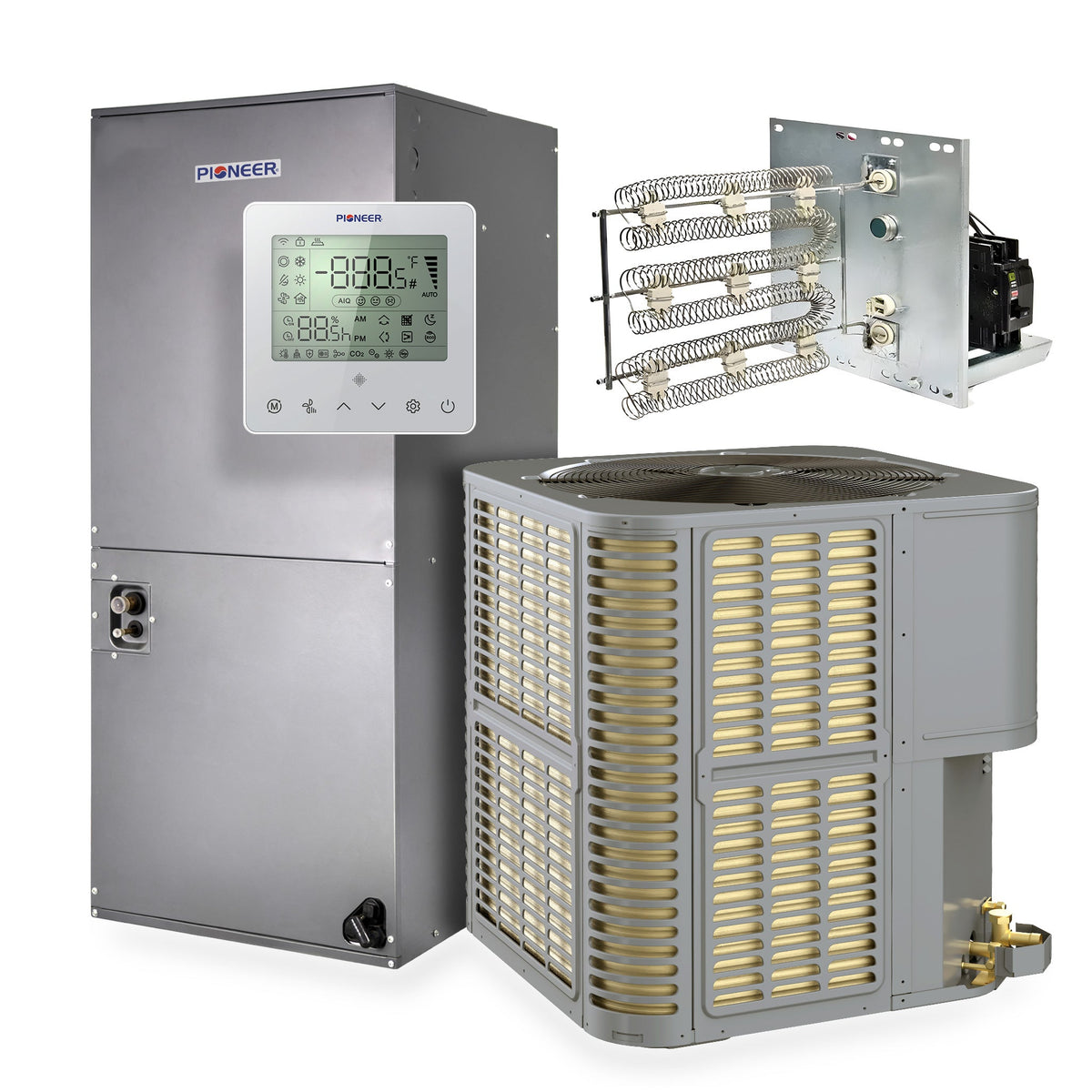

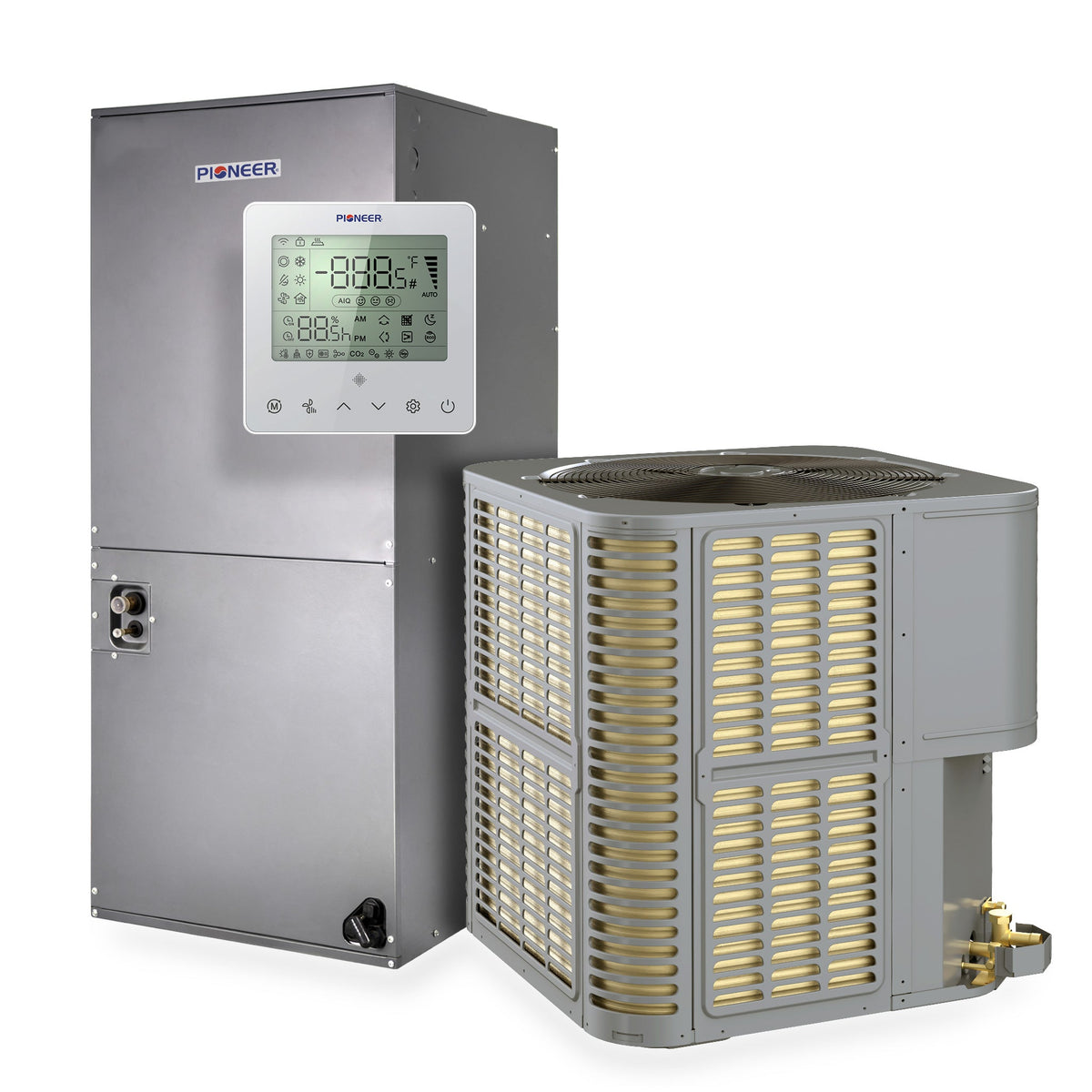

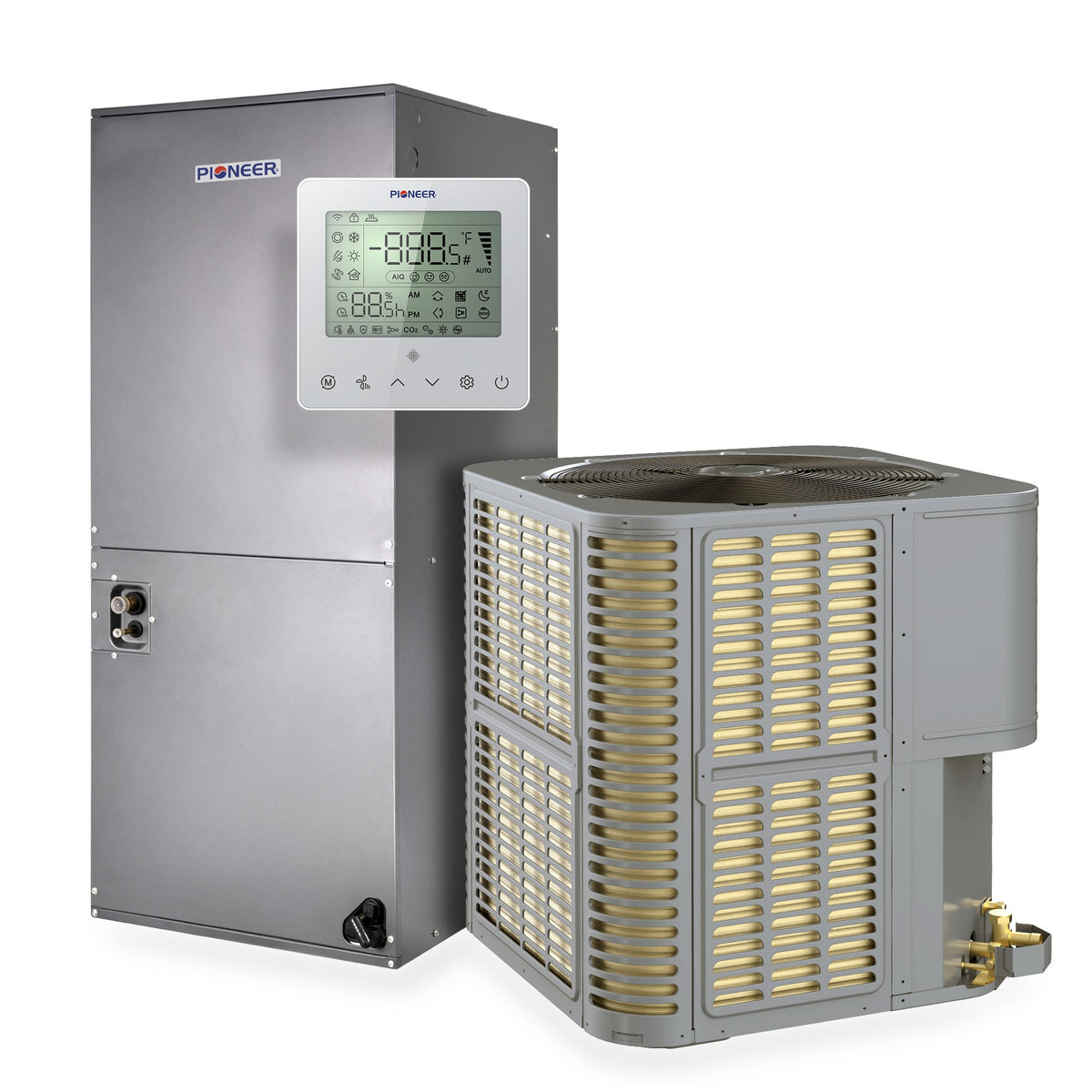

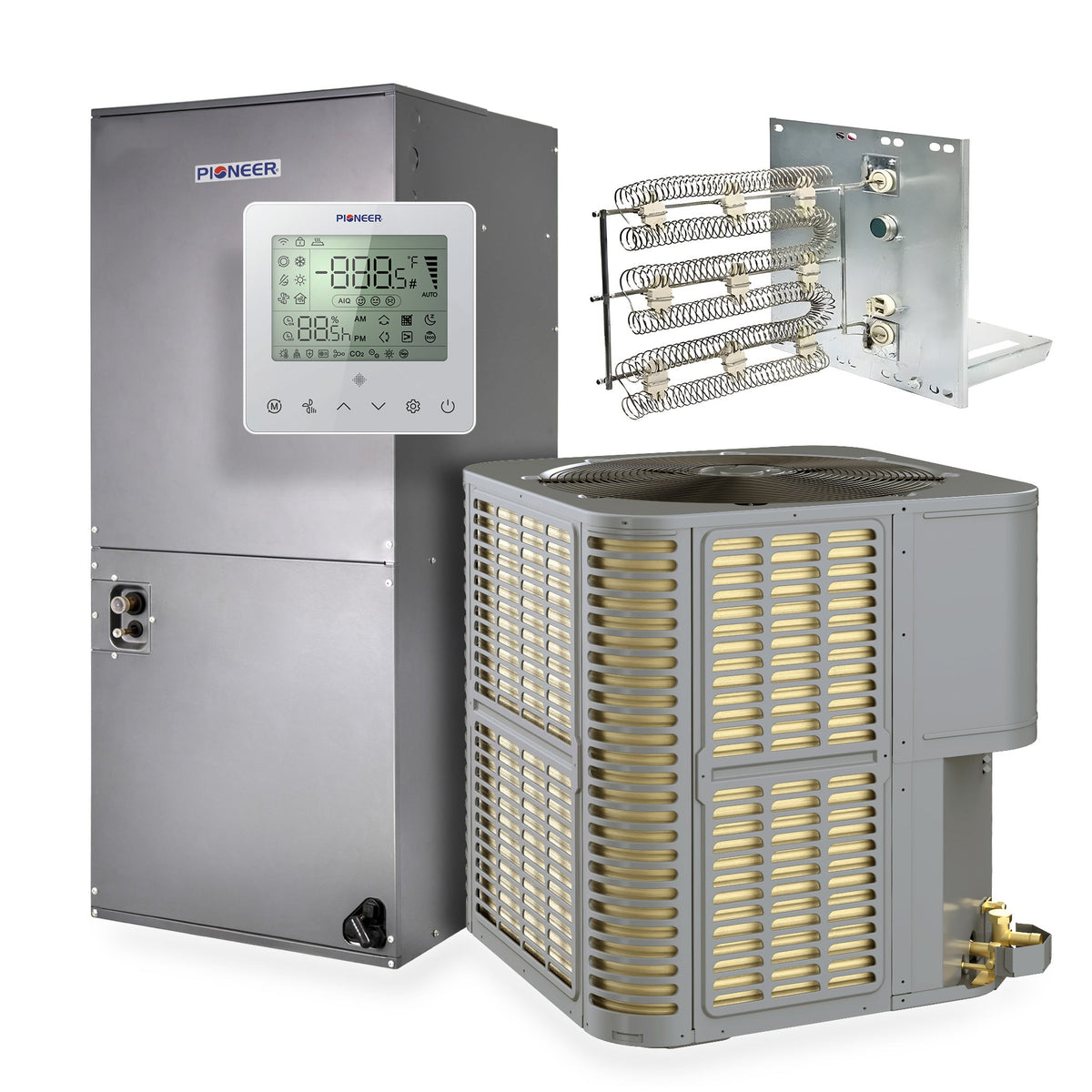

Pioneer® Vertex™ 56,000 BTU 17 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump

Delivering powerful and efficient climate control, the Pioneer® Vertex™ 56,000 BTU ducted central split heat pump system combines advanced inverter technology with environmentally friendly refrigerant for superior performance in residential and light commercial settings.

Key Features:

  • Cooling Capacity: 55,500 BTU/h with 17.0 SEER2 and 10.0 EER2 efficiency
  • Heating Capacity: 57,000 BTU/h with 8.6 HSPF2 and 2.1 COP2 efficiency
  • Power Supply: 208/230V, 60Hz, single phase

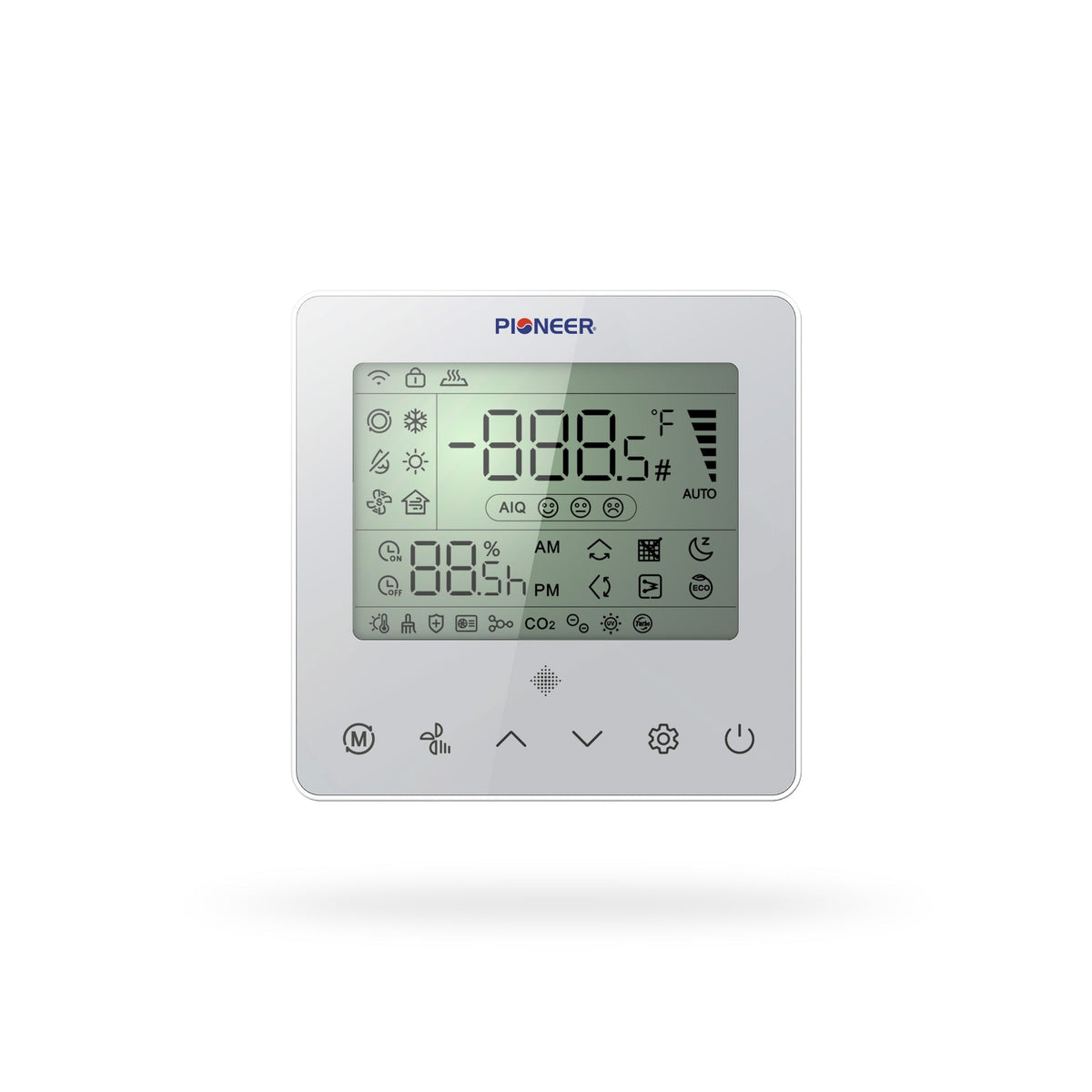

  • Communicating System: Dedicated signal transmission for precise control and integration
  • Variable-Speed DC Inverter: Optimizes energy use and system responsiveness
  • Eco-Friendly Refrigerant: Factory precharged with R454b refrigerant
  • Wide Operating Range: Effective heating down to -4°F and cooling up to 131°F


Summary

  • High Efficiency Vertex Ducted Central Split Heat Pump System
  • Cooling capacity: 55,500 BTU/H with 17.0 SEER2 / 10.0 EER2 efficiency
  • Heating capacity: 57,000 BTU/H with 8.6 HSPF2 / 2.1 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Communicating system with dedicated signal transmission
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Low Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 55,500 BTU/h
    • Cooling Capacity Range: 37,600~67,400 BTU/h
    • Cooling SEER2: 17.0 BTU/W.h
    • Cooling EER2: 10.0 BTU/W.h
    • Heating Rated Capacity: 57,000 BTU/h
    • Heating Capacity Range: 18,000~72,500 BTU/h
    • Heating HSPF2 (Region IV): 8.6 BTU/W.h
    • Heating C.O.P.2 (5°F): 2.1 W/W
    • Refrigerant Type: R454b
    • AHRI Reference: 217048500

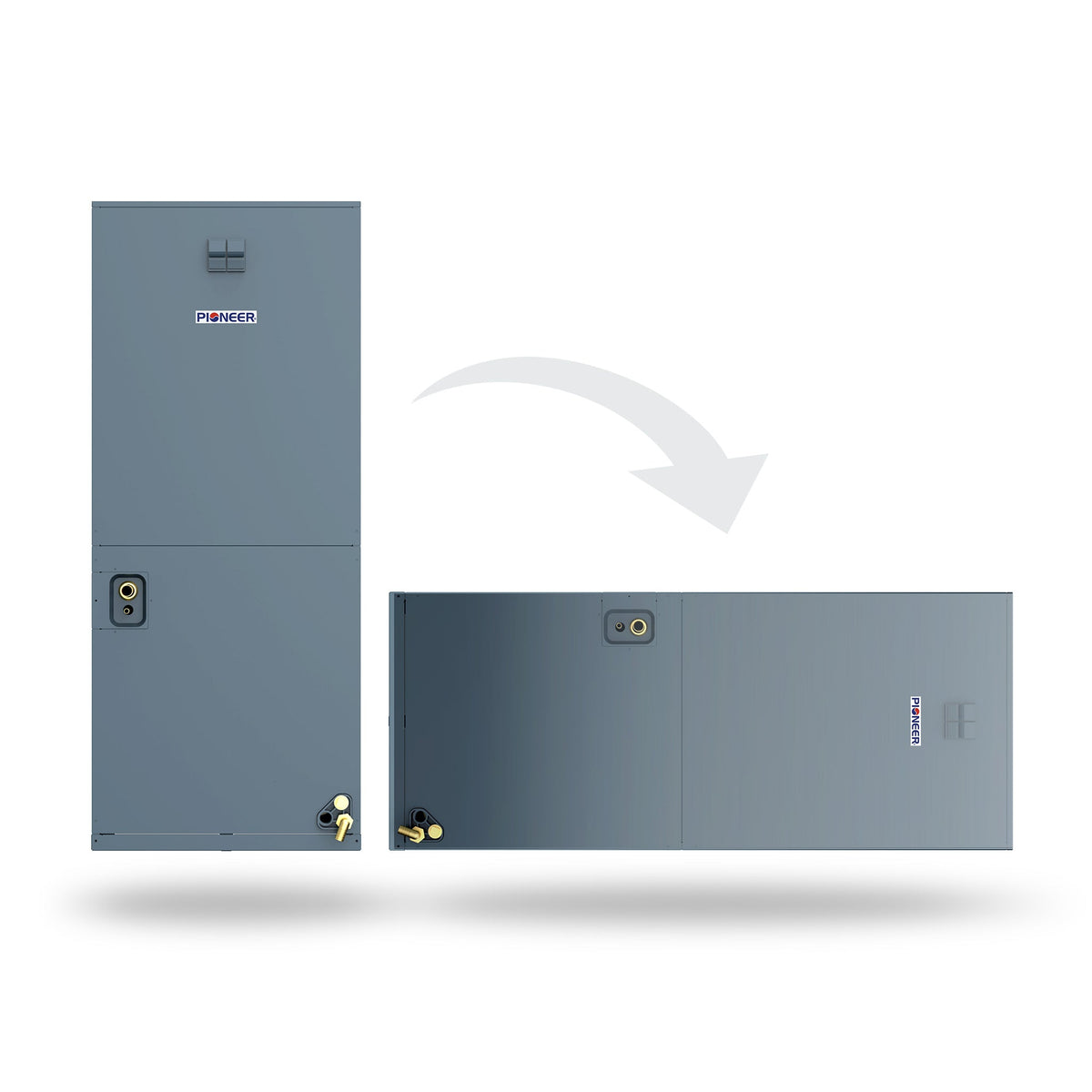

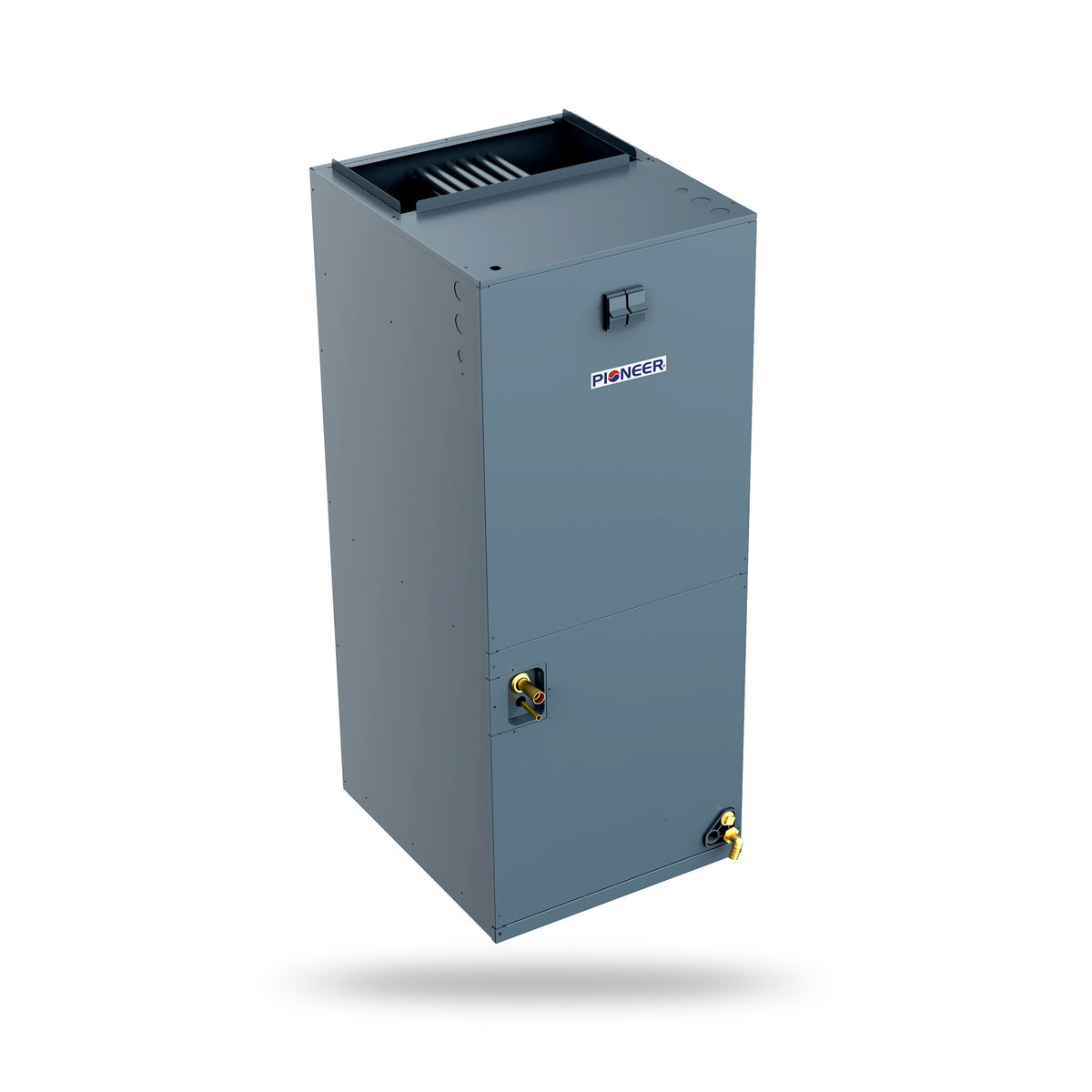

  • Air Handler
    • Part Number: DC060GCSICDHRT
    • Air Flow (Hi/Lo): 1,500 / 1,205 CFM
    • Sound Level (Hi/Lo): 59 / 55 dB(A)
    • Product Dimensions (WDH): 22" x 24"-1/2 x 53"-1/8 Inches
    • Carton Dimensions (WDH): 25"-1/4 x 28" x 54"-3/4 Inches
    • Net / Gross Weight: 169 / 182 lbs

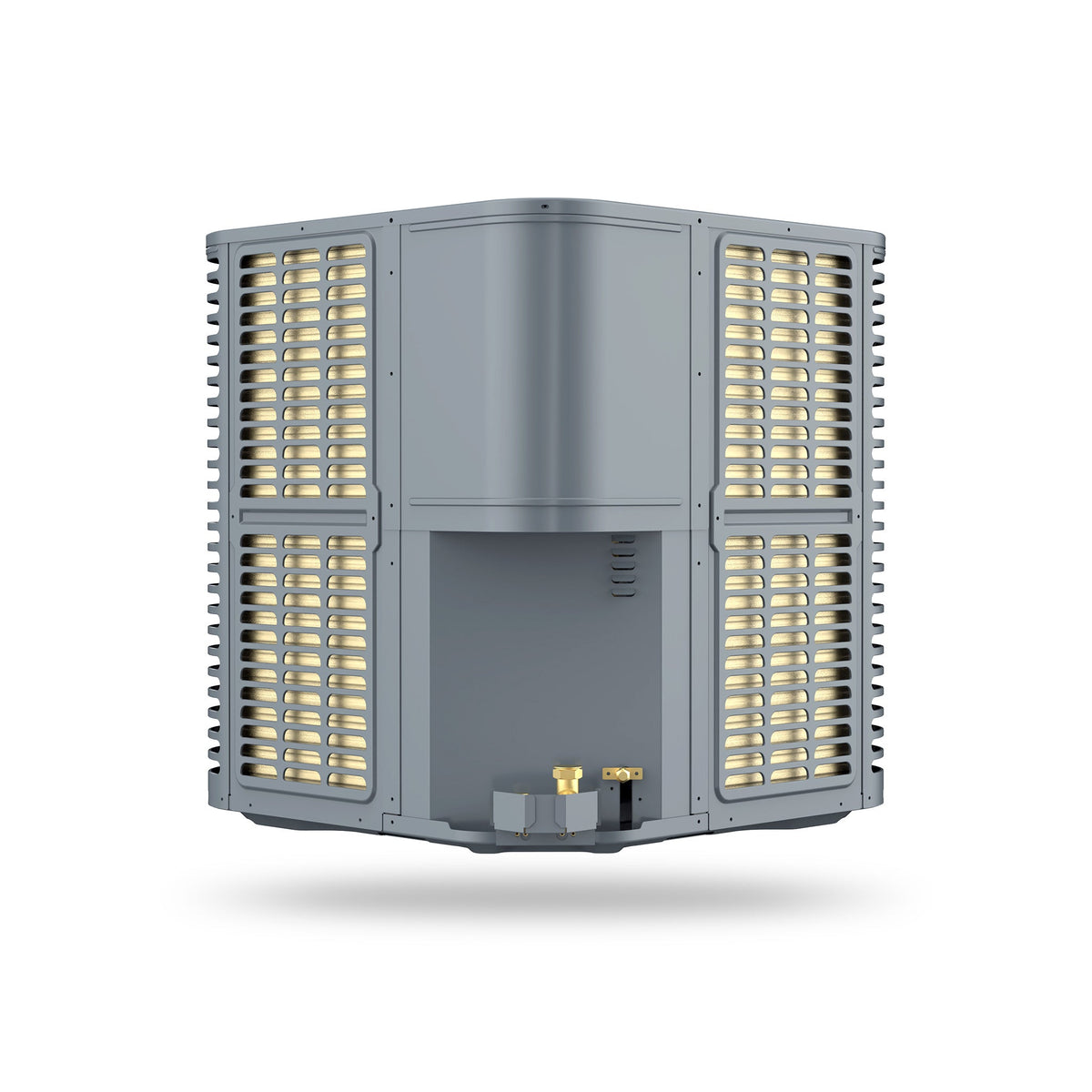

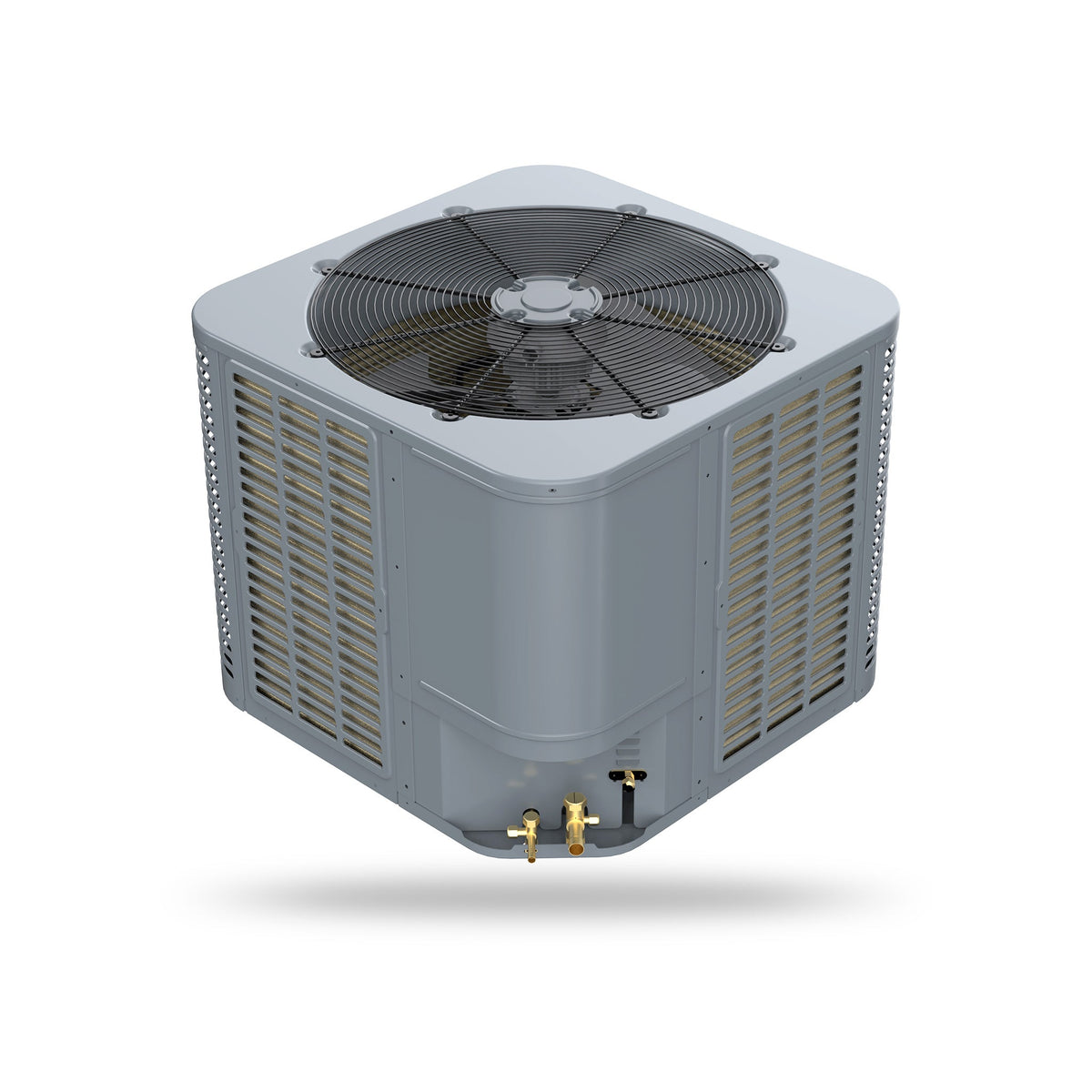

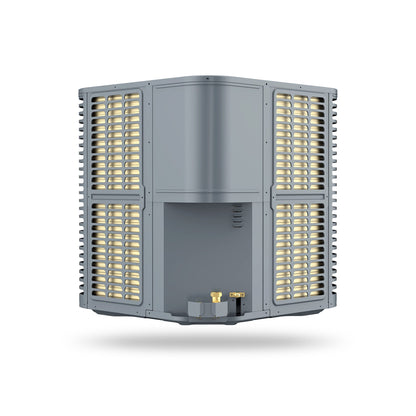

  • Outdoor Unit
    • Part Number: YD4860GCSI18RD
    • Breaker Needed: 30A (double-pole)
    • Sound Level: 79 dB(A)
    • Net Dimensions (WDH): 29"-1/8 x 29"-1/8 x 32" Inches
    • Carton Dimensions (WDH): 30" x 30" x 34"-1/2 Inches
    • Net / Gross Weight: 187 / 196 lbs

Dimension Chart

29⅛ 29⅛ 32 22 24½ 53⅛
