SKU:DYC048GCSI18RD-05B

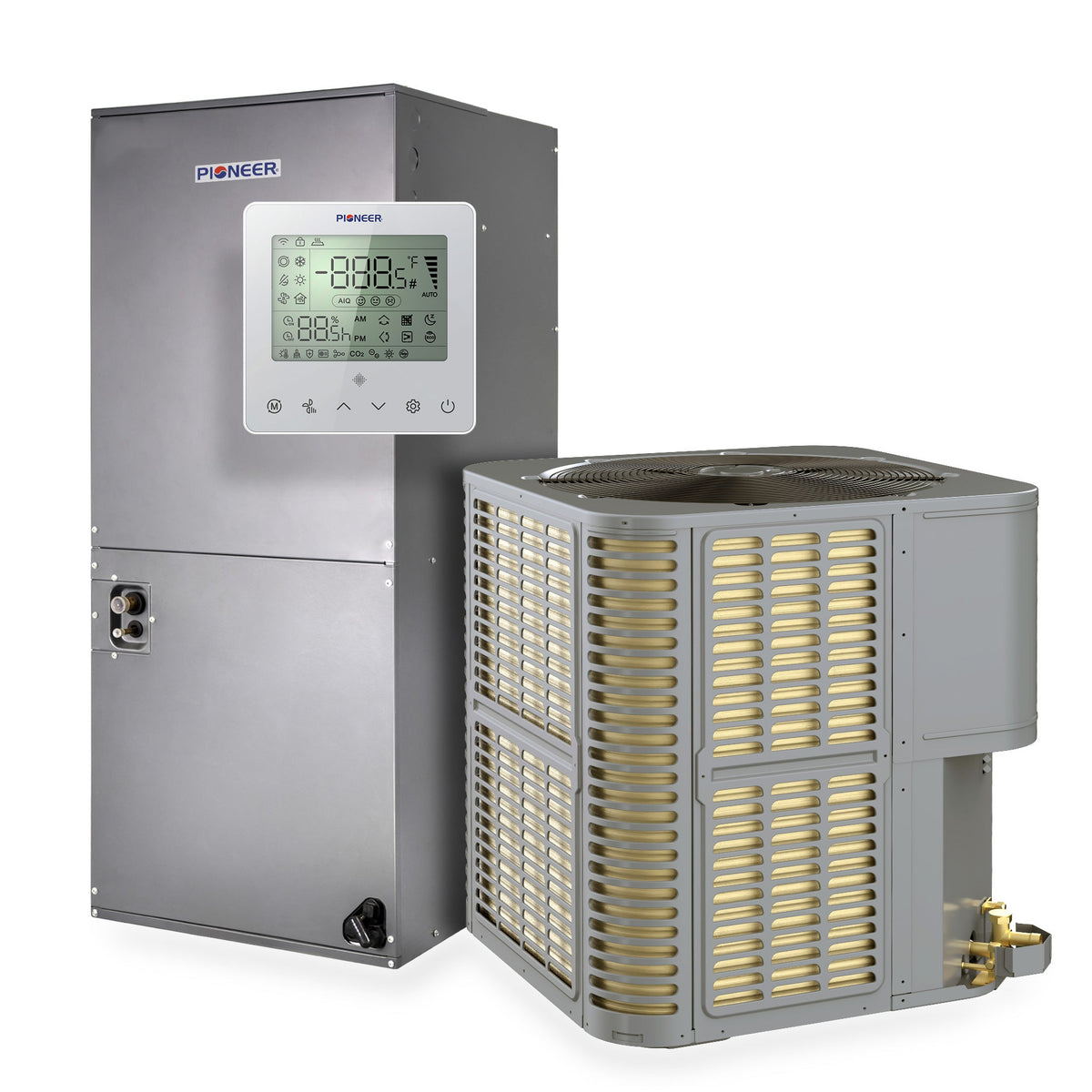

Pioneer® Vertex™ 48,000 BTU 17.5 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump
Pioneer® Vertex™ 48,000 BTU 17.5 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump
Couldn't load pickup availability
Why Buy From Us?
*Excluding Wyoming

Estimated Delivery Timeline
Order Placed
Ships Out
Delivered
💰 Exclusive Volume Discounts — Save up to $3000 on Your Order!
🎉 Your Discount Code
- Description
- Shipping
- Product Quality Guaranteed
- Contact US
Pioneer® Vertex™ 48,000 BTU 17.5 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump
Experience reliable, high-efficiency heating and cooling with the Pioneer® Vertex™ 48,000 BTU ducted central split heat pump system. Engineered with advanced inverter technology and eco-friendly refrigerant, this system offers superior comfort with energy savings for residential and light commercial applications.
Key Features:
- Cooling Capacity: 47,500 BTU/h with 17.5 SEER2 and 11.3 EER2 efficiency
- Heating Capacity: 48,000 BTU/h with 9.0 HSPF2 and 2.1 COP2 efficiency
- Power Supply: 208/230V, 60Hz, single phase

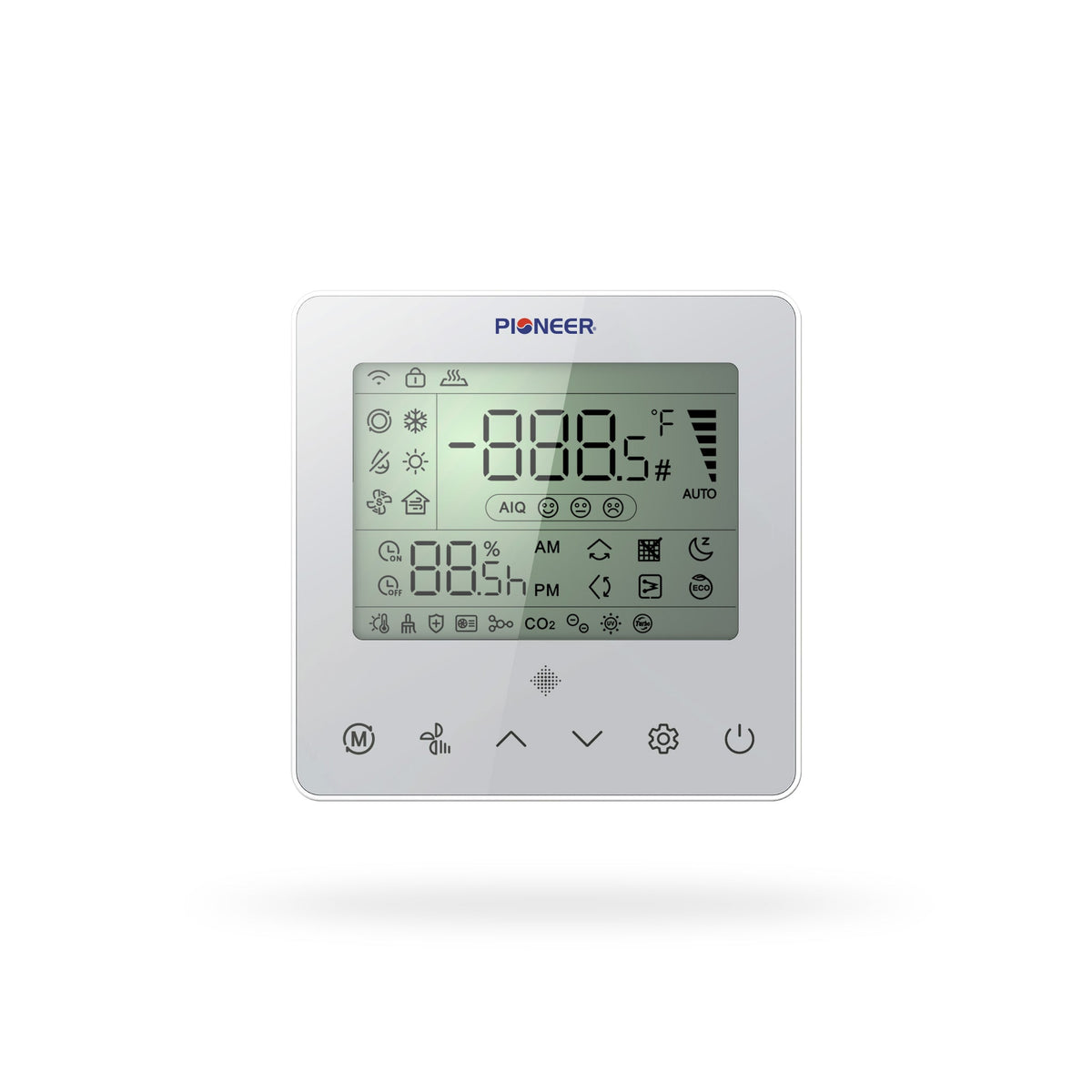

- Communicating System: Dedicated signal transmission for precise control and integration
- Variable-Speed DC Inverter: Provides optimized performance and energy efficiency
- Environmentally Friendly Refrigerant: Factory precharged with R454b refrigerant
- Wide Operating Range: Efficient heating down to -4°F and cooling up to 131°F
Ideal for those seeking a powerful, efficient ducted mini split system with advanced controls and environmentally conscious refrigerant.
Summary
- High Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 47,500 BTU/H with 17.5 SEER2 / 11.3 EER2 efficiency
- Heating capacity: 48,000 BTU/H with 9.0 HSPF2 / 2.1 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Communicating system with dedicated signal transmission
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)
Technical Information & Performance
-

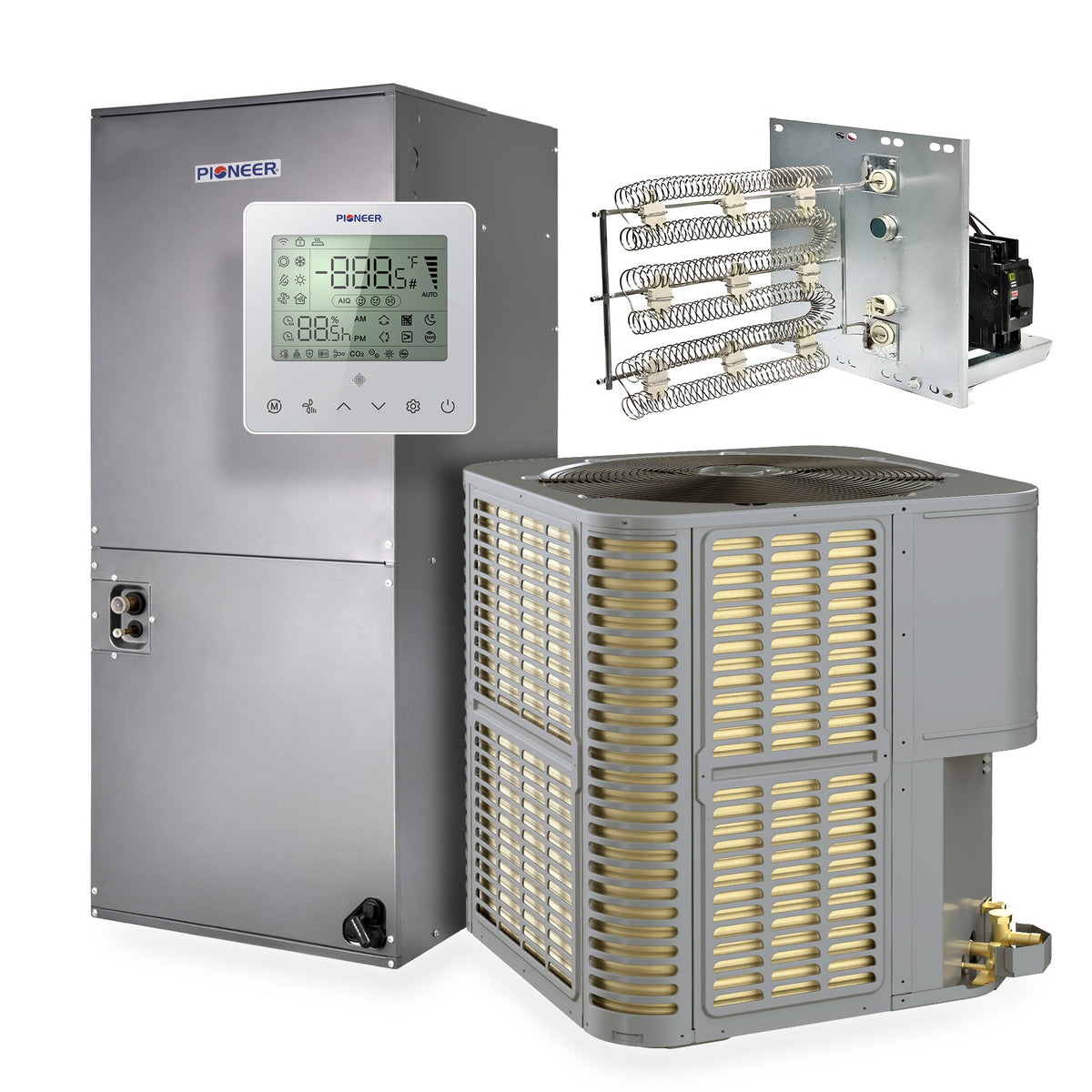

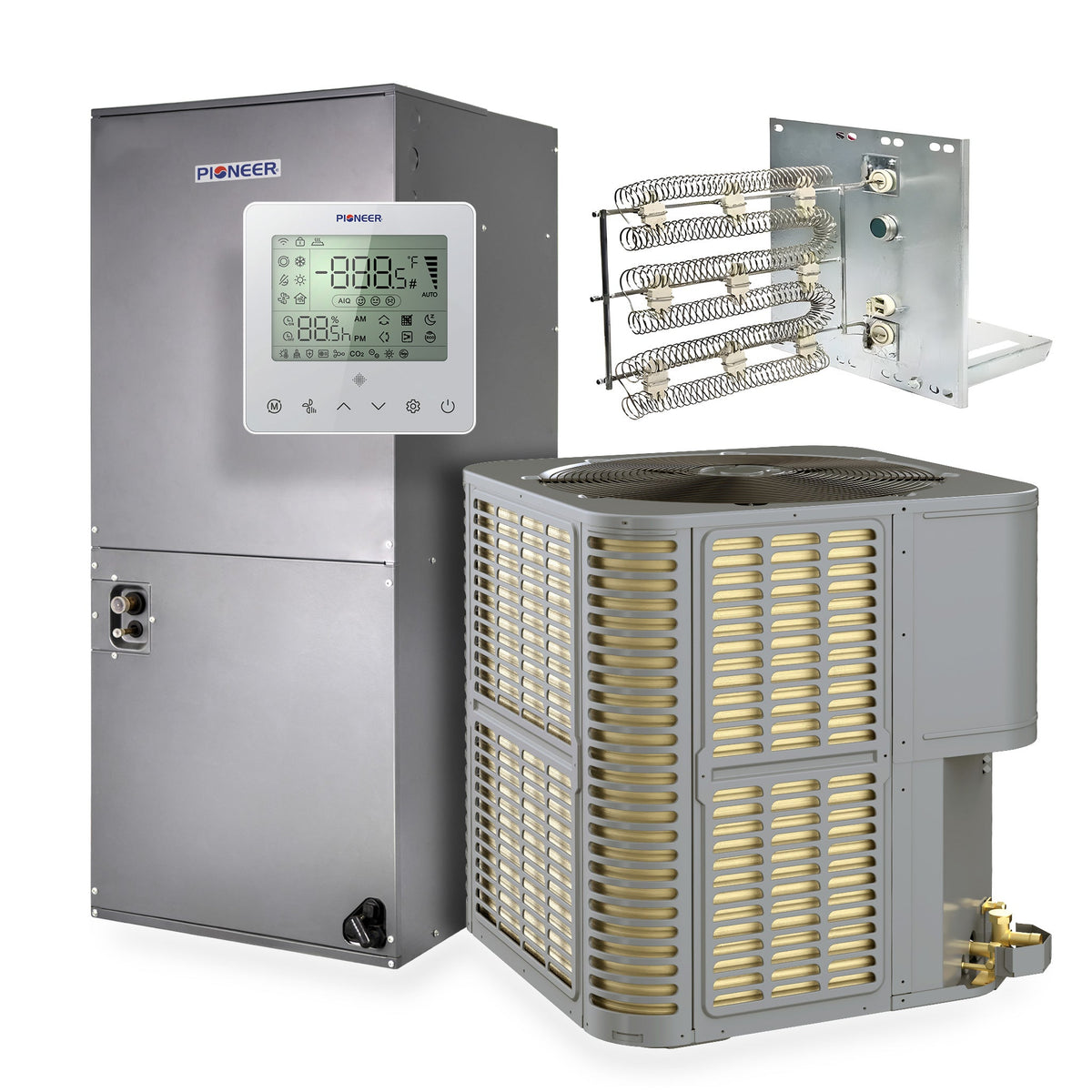

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 47,500 BTU/h
- Cooling Capacity Range: 32,900~57,300 BTU/h
- Cooling SEER2: 17.5 BTU/W.h
- Cooling EER2: 11.3 BTU/W.h
- Heating Rated Capacity: 48,000 BTU/h
- Heating Capacity Range: 15,200~65,500 BTU/h
- Heating HSPF2 (Region IV): 9.0 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
- Refrigerant Type: R454b
- AHRI Reference: 217048499
-

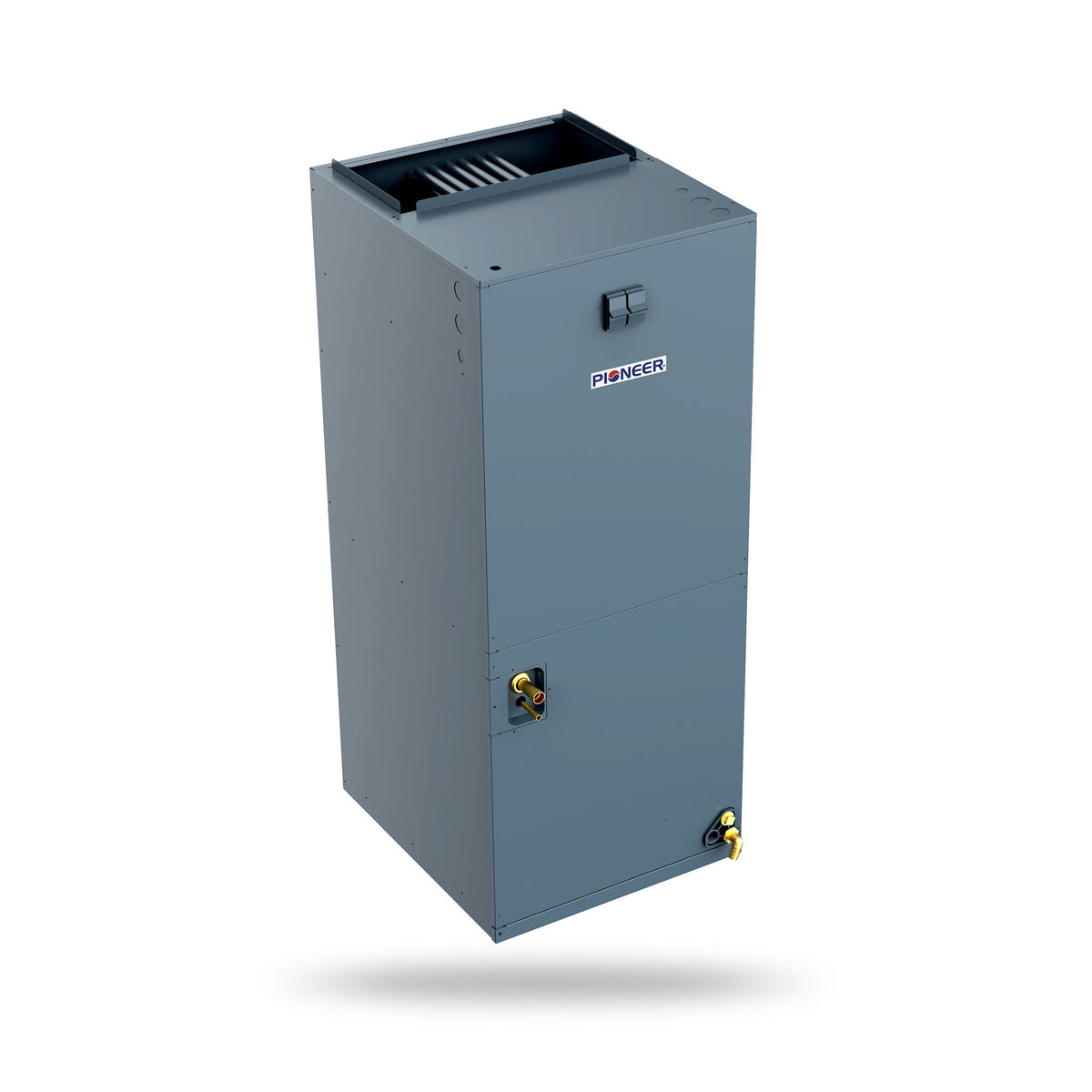

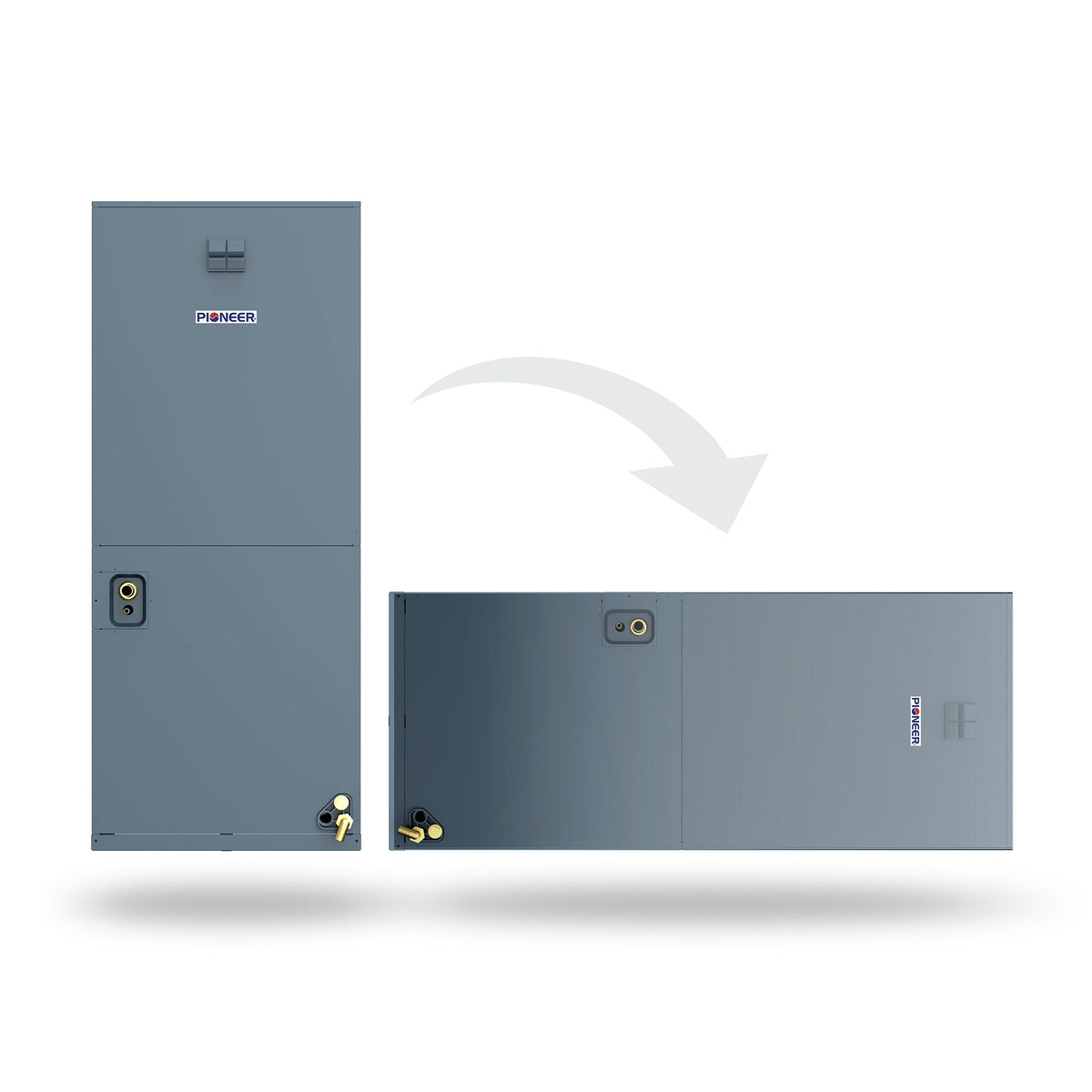

Air Handler
- Part Number: DC048GCSICDHRT
- Air Flow (Hi/Lo): 1,500 / 1,205 CFM
- Sound Level (Hi/Lo): 59 / 55 dB(A)
- Product Dimensions (WDH): 22" x 24"-1/2 x 53"-1/8 Inches
- Carton Dimensions (WDH): 25"-1/4 x 28" x 54"-3/4 Inches
- Net / Gross Weight: 169 / 182 lbs
-

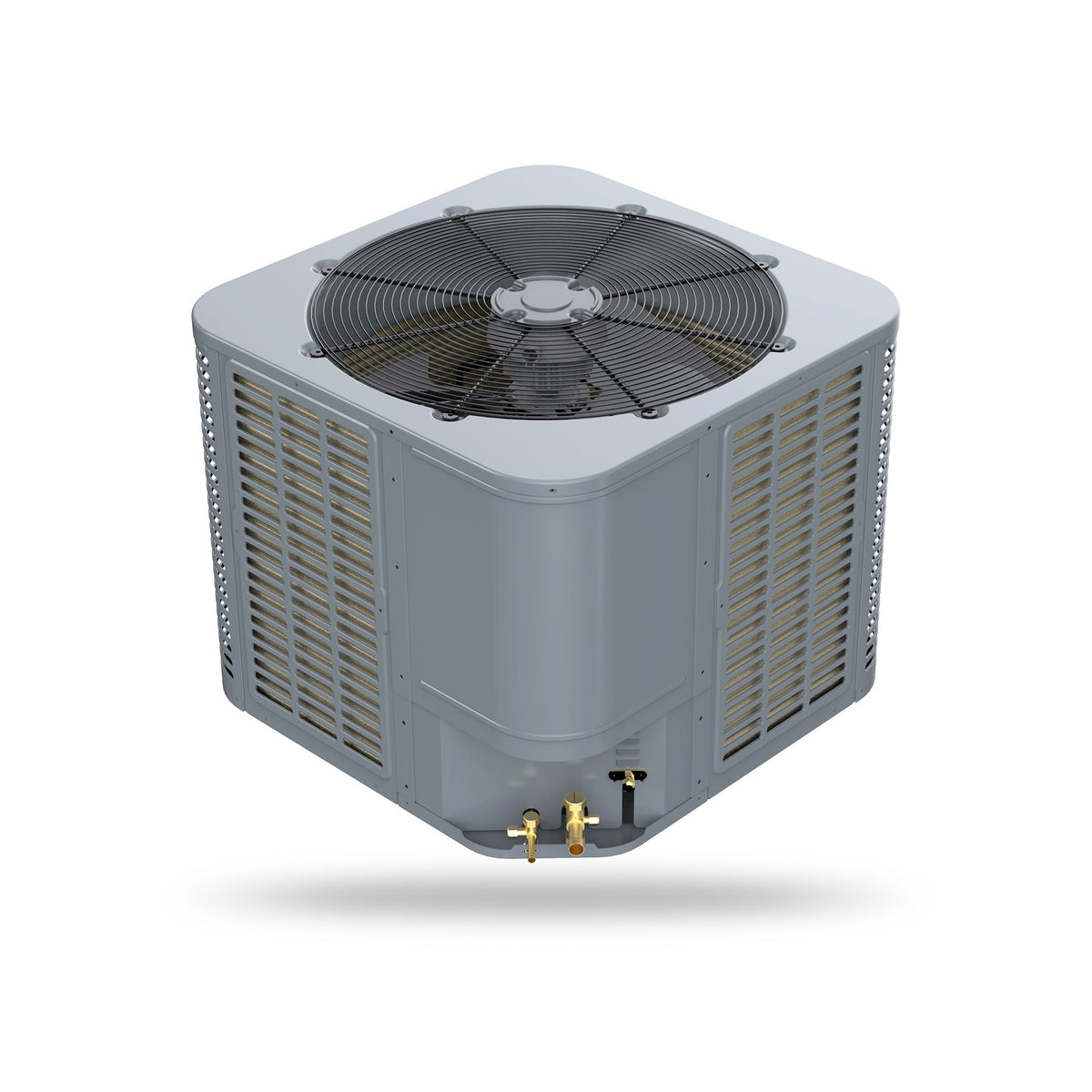

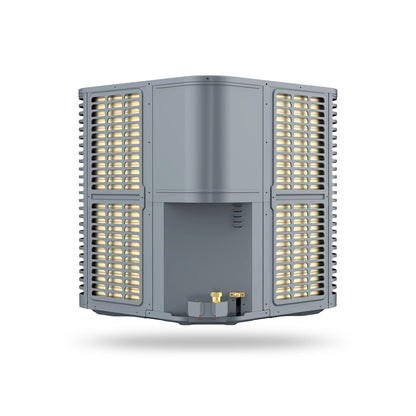

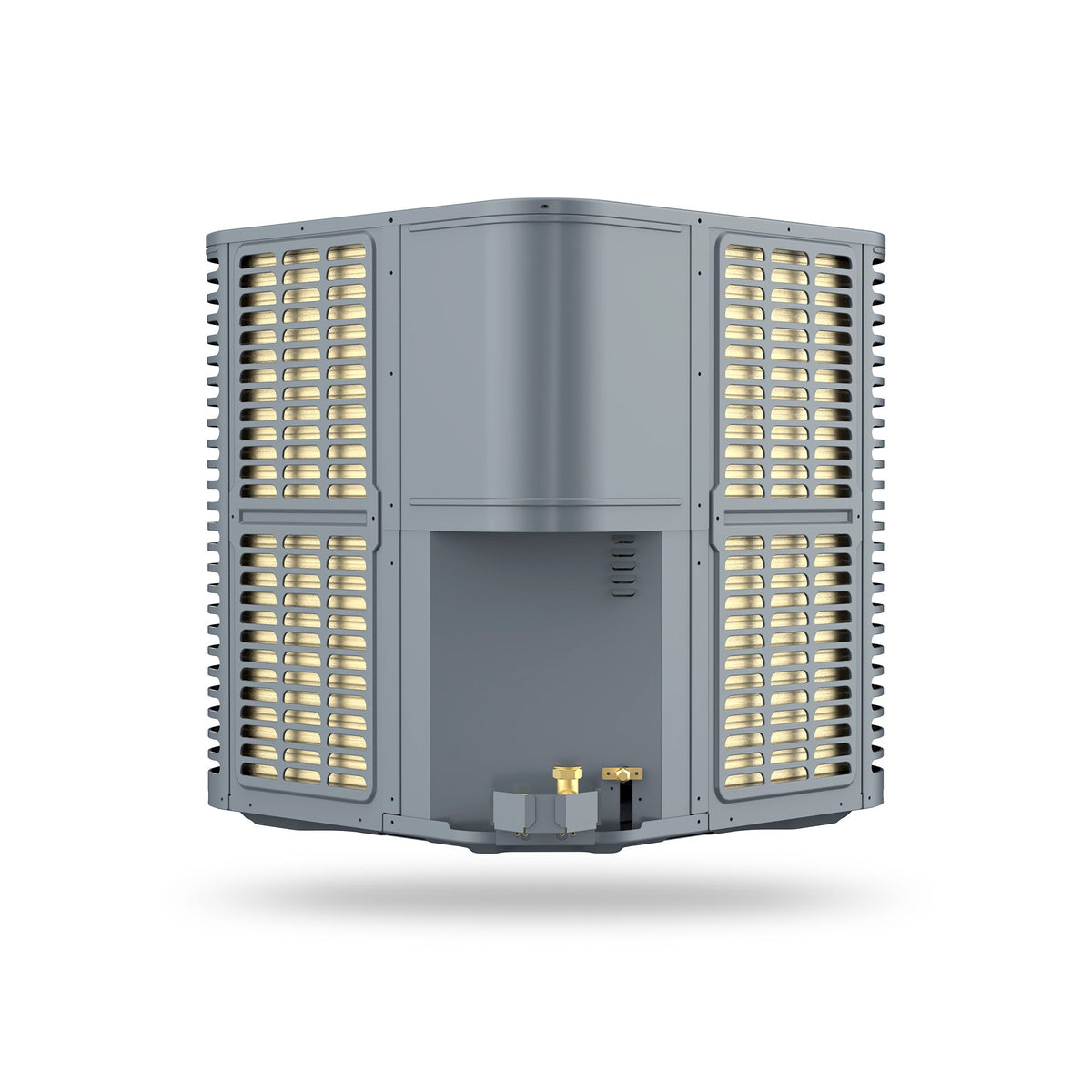

Outdoor Unit
- Part Number: YD4860GCSI18RD
- Breaker Needed: 25A (double-pole)
- Sound Level: 76 dB(A)
- Net Dimensions (WDH): 29"-1/8 x 29"-1/8 x 32" Inches
- Carton Dimensions (WDH): 30" x 30" x 34"-1/2 Inches
- Net / Gross Weight: 187 / 196 lbs
Dimension Chart
