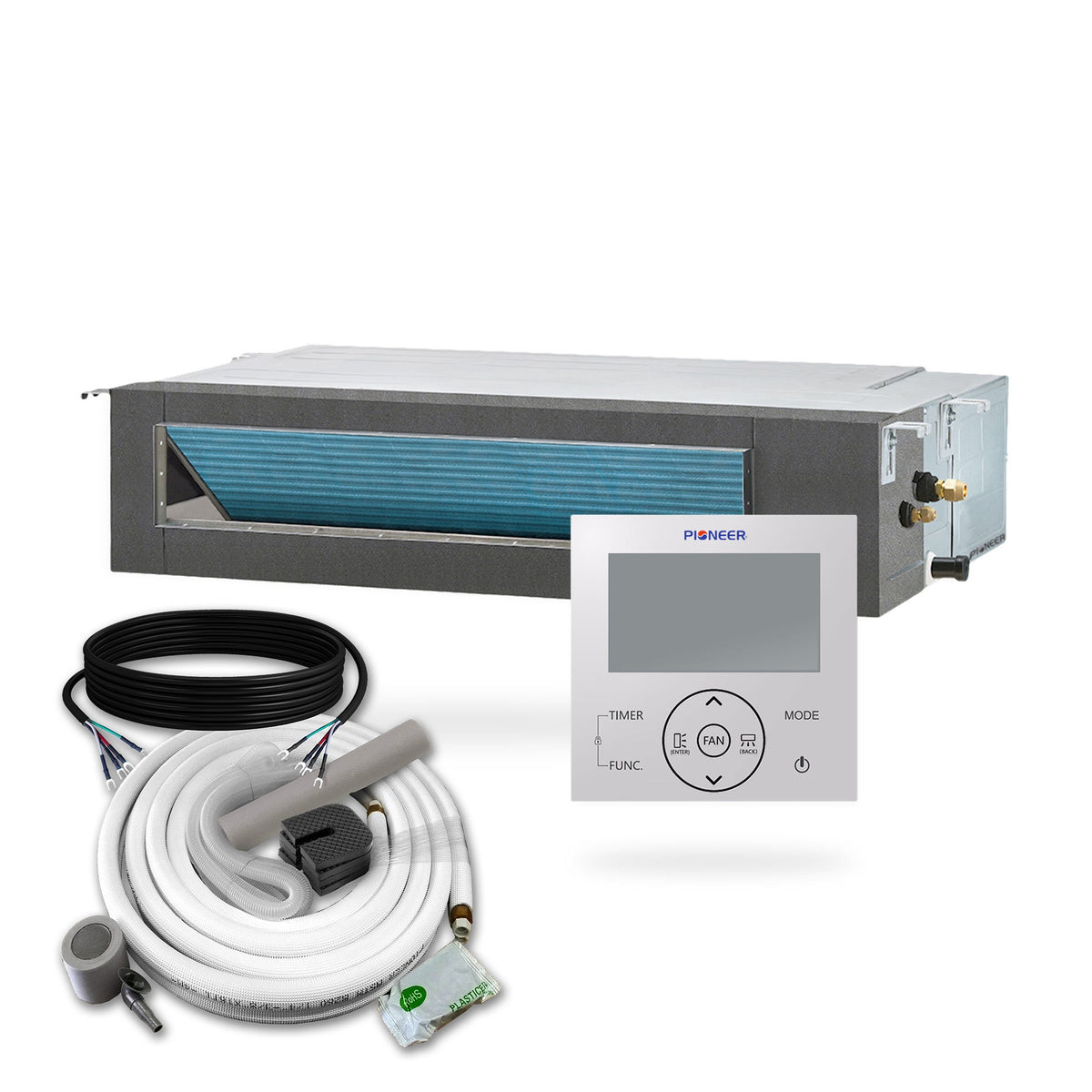

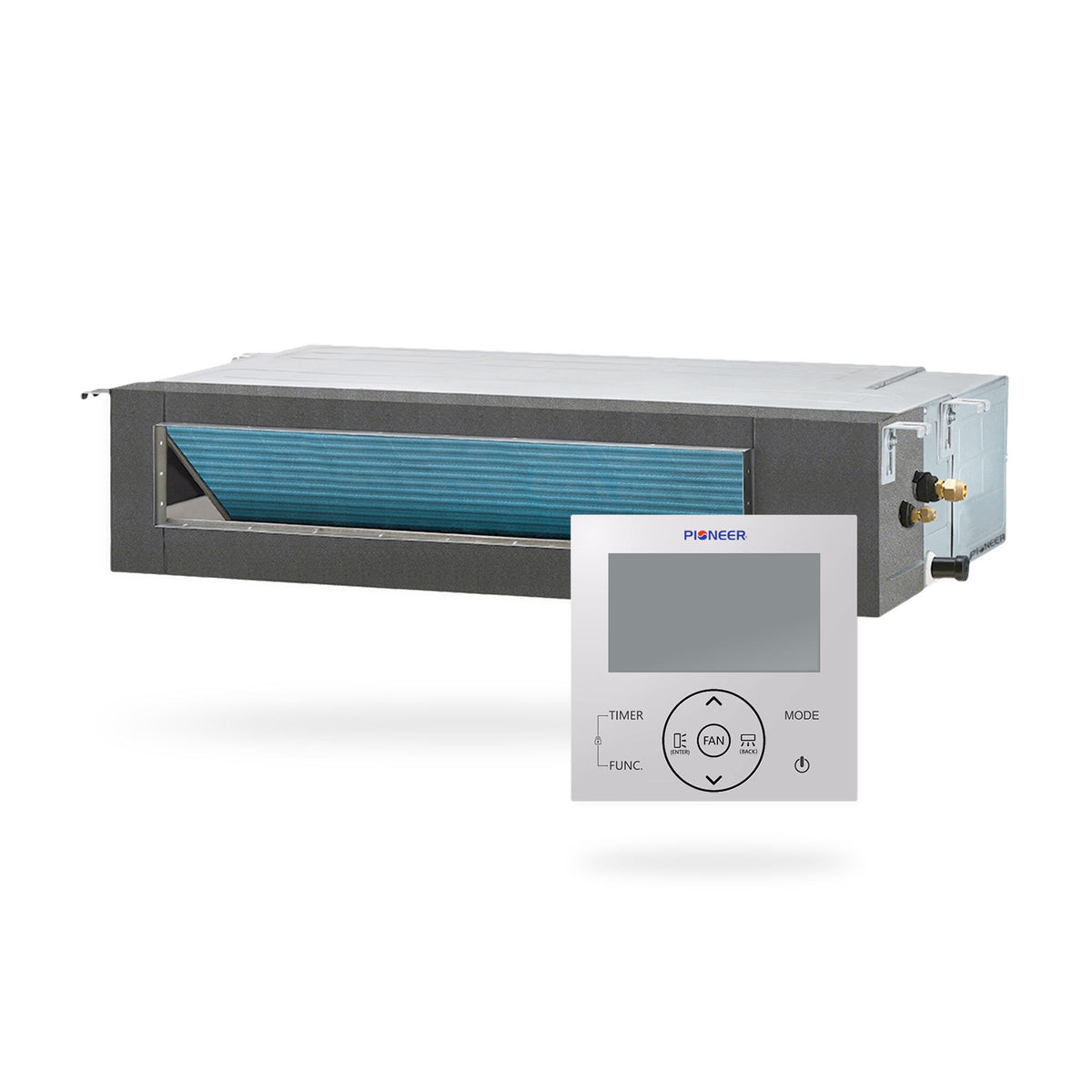

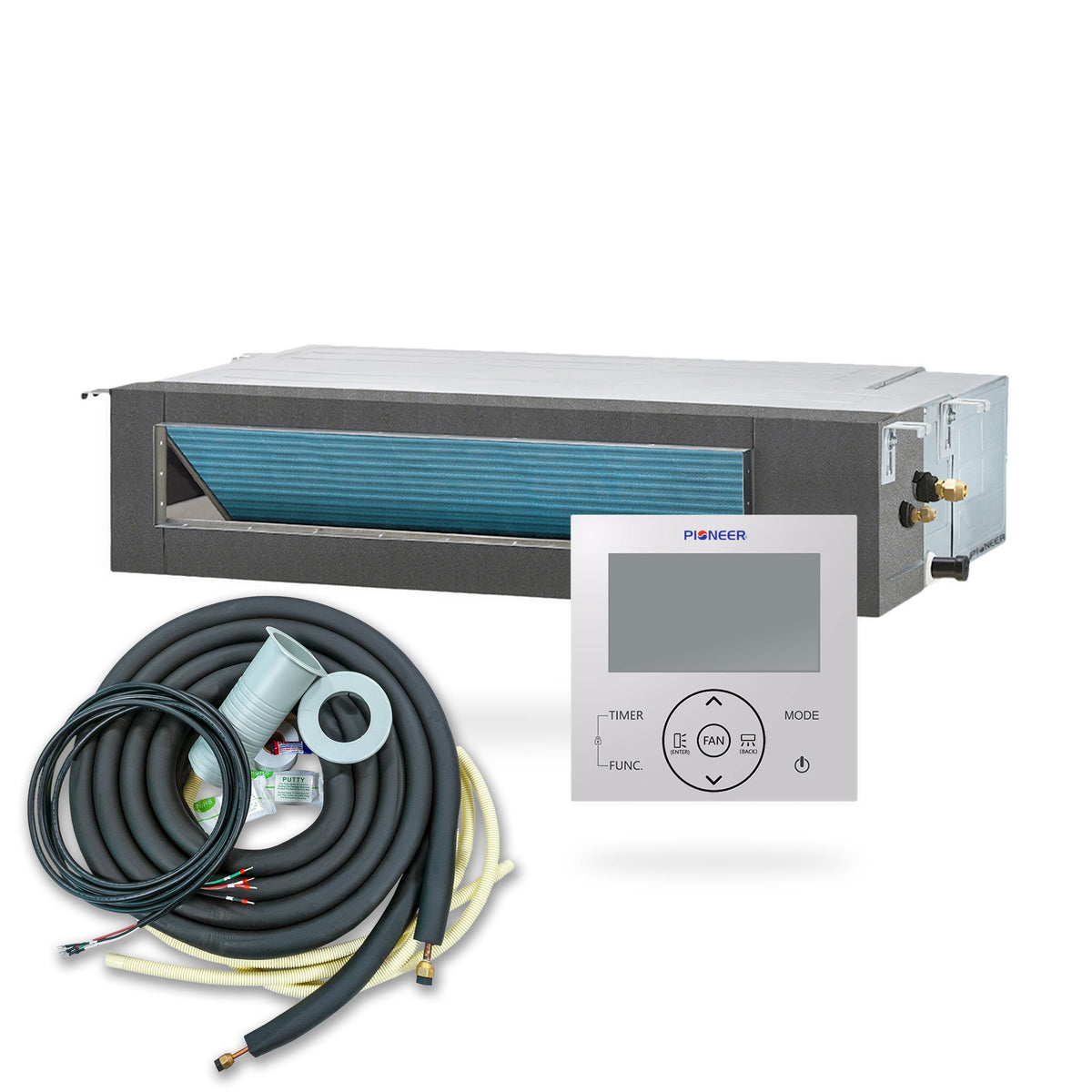

Pioneer® Multi Zone 9,000 BTU Quantum Ultra Ceiling Concealed Indoor Unit — Precision Ductable Mini-Split Solution for Multi-Zone HVAC Installations
Enhance your multi-zone HVAC projects with the Pioneer® Quantum Ultra 9,000 BTU ceiling concealed indoor unit, engineered for quiet, efficient performance and seamless integration with Pioneer’s Quantum Ultra multi-zone condensers. Ideal for ductable applications in spaces from 150 to 350 sq. ft., this unit delivers reliable cooling and heating with advanced inverter technology.
Why HVAC Professionals Choose the Pioneer Quantum Ultra Ceiling Concealed Unit:
- Efficient & Quiet Operation: Variable-speed inverter technology ensures precise temperature control with ultra-quiet sound levels as low as 27 dB(A), perfect for noise-sensitive environments.
- Multi-Zone Compatibility: Designed to pair with dual, triple, quad, or quint zone condensers, offering flexible solutions for complex multi-room installations.
- Compact & Concealed: Low-profile ceiling design keeps your client’s space clean and unobtrusive while delivering powerful airflow up to 335 CFM.
- Smart Connectivity: Built-in Wi-Fi module with free app allows remote monitoring and control, enhancing user convenience and satisfaction.
- Complete Installation Kit: Includes all necessary hardware and leak guard sealer for professional-grade installation efficiency.
- Reliable & Supported: Backed by Pioneer’s trusted warranty and technical support for peace of mind on every job.
Key Performance Specs:
- Cooling & Heating Capacity: 9,000 BTU/h
- Suitable Area: 150–350 sq. ft.
- Airflow (Turbo/Hi/Med/Lo/Mute): 335 / 305 / 276 / 182 / 160 CFM
- Sound Levels (Turbo/Hi/Med/Lo/Mute): 42 / 39 / 34 / 28 / 27 dB(A)
- Dimensions (W x D x H): 27-1/2" x 19-1/4" x 7-7/8"
- Weight: 33.1 lbs net, 40.8 lbs gross
Compatible Outdoor Units:
- Dual Zone Condenser: YN020GLSI24M2G
- Triple Zone Condenser: YN030GLSI24M3G
- Quad Zone Condenser: YN040GLSI24M4G
- Quint Zone Condenser: YN050GLSI24M5G
Deliver quiet, efficient comfort with the Pioneer Quantum Ultra 9,000 BTU ceiling concealed unit — engineered for professional installers demanding quality, reliability, and flexibility in multi-zone ductable systems.
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 9,000 BTU/h
- Suitable Area: 150~350 Sq.F
- Air Flow (Turbo/Hi/Med/Lo/Mute): 335/305/276/182/160 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 42/39/34/28/27 dB(A)
- Product Dimensions (WDH): 27"-1/2 x 19-1/4" x 7-7/8" Inches
- Carton Dimensions (WDH): 35-1/2" x 21-7/8" x 9-7/8" Inches
- Net / Gross Weight: 33.1 / 40.8 lbs
Compatibility
- Dual (2) Zone Condenser: YN020GLSI24M2G
- Triple (3) Zone Condenser: YN030GLSI24M3G
- Quad (4) Zone Condenser: YN040GLSI24M4G
- Quint (5) Zone Condenser: YN050GLSI24M5G
Manuals & Documents
What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
