Pioneer® 13,500 BTU Full Inverter Rooftop RV Air Conditioner Heat Pump, 115V

Pioneer® 13,500 BTU Full Inverter Rooftop RV Air Conditioner Heat Pump, 115V

Authorized Dealer
In stock, ready to ship

Regular price $1,628.00 USD
Regular price $2,248.00 USD Sale price $1,628.00 USD
Sale Sold out

Why Buy From Us?

Lowest Prices
FREE EXPRESS SHIPPING
Warranty Included
Account Rep — (844) 777-0683
No Sales Tax*

*Excluding Wyoming

View full details
Pioneer® 13,500 BTU Full Inverter Rooftop RV Air Conditioner Heat Pump, 115V
$1,628.00 $2,248.00

Estimated Delivery Timeline

Order Placed

Ships Out

Delivered

Need help choosing a Product?

Call (844) 777-0683

Speak with a product expert in seconds.

💰 Exclusive Volume Discounts — Save up to $3000 on Your Order!

$0 – $5,000
5% OFF
$5,000 - $10,000
7% OFF
$10,000 - $25,000
11% OFF
Description

Summary

    • Model Number: PYZ012AZUDCIPD
    • Cooling Capacity: 13,500 BTU
    • Cooling Efficiency (EER): 9.0 BTU/w.h
    • Heating Capacity: 13,500 BTU
    • Heating Efficiency (C.O.P.): 3.04 W/W
    • Power Supply: 115V / 60Hz

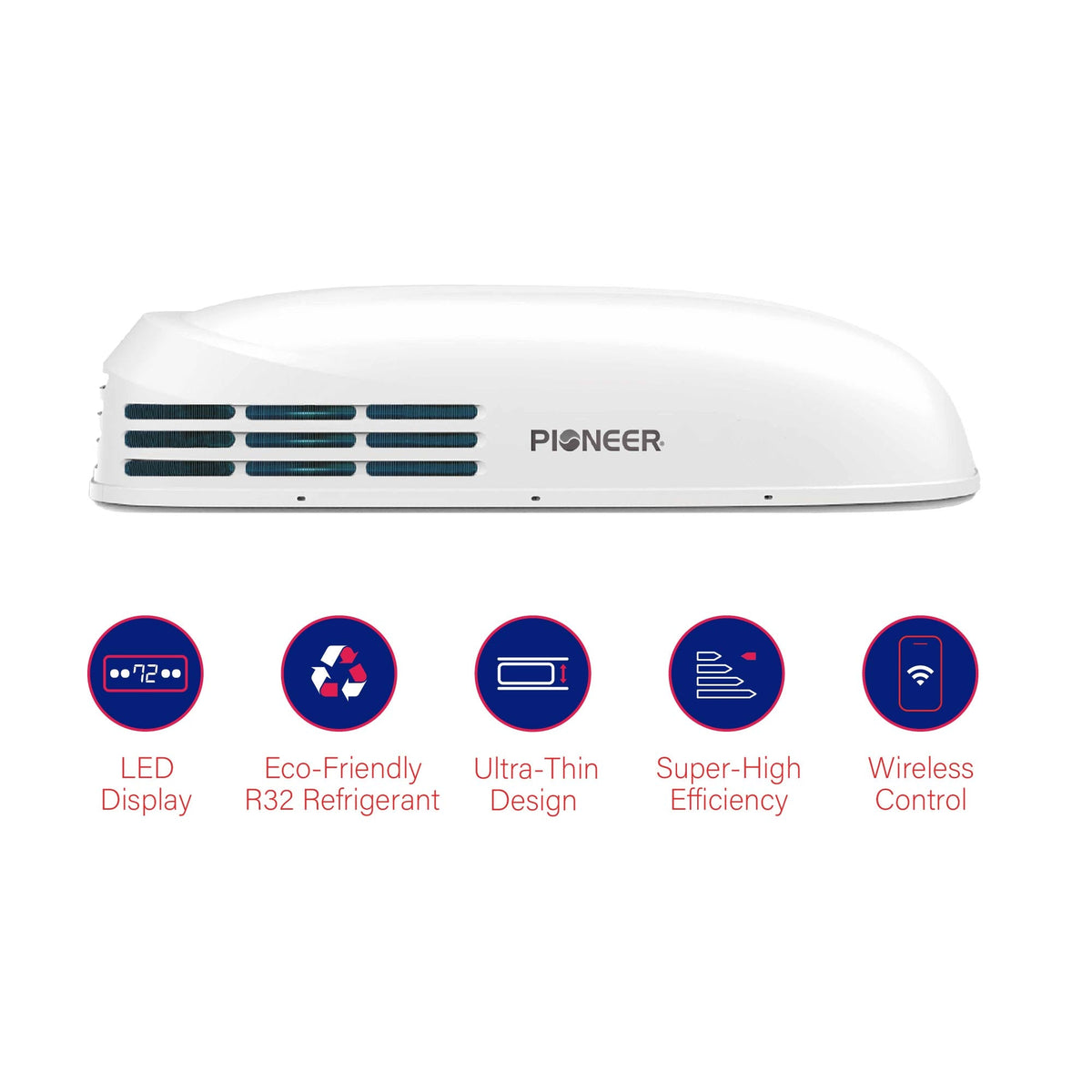

    • Full DC Inverter Technology for high efficiency & quiet operation
    • Zero In-Rush Current eliminates the need for expensive soft-starters
    • Dual-Fan Structure for improved airflow and noise reduction
    • App & Remote Control Compatible for easy operation
    • Heat Pump Function for cooling and heating versatility
    • Sleek, Low-Profile Design (<10" height) reduces wind resistance
    • Smart Airflow Distribution for even temperature control
    • Energy-Efficient R32 Refrigerant (non-ozone depleting)
    • Wide Operating Temperature Range:
      • Cooling Mode: 63°F - 109°F (Outdoor) / 63°F - 90°F (Indoor)
      • Heating Mode: 28°F - 75°F (Outdoor) / 28°F - 81°F (Indoor)

    What's Included

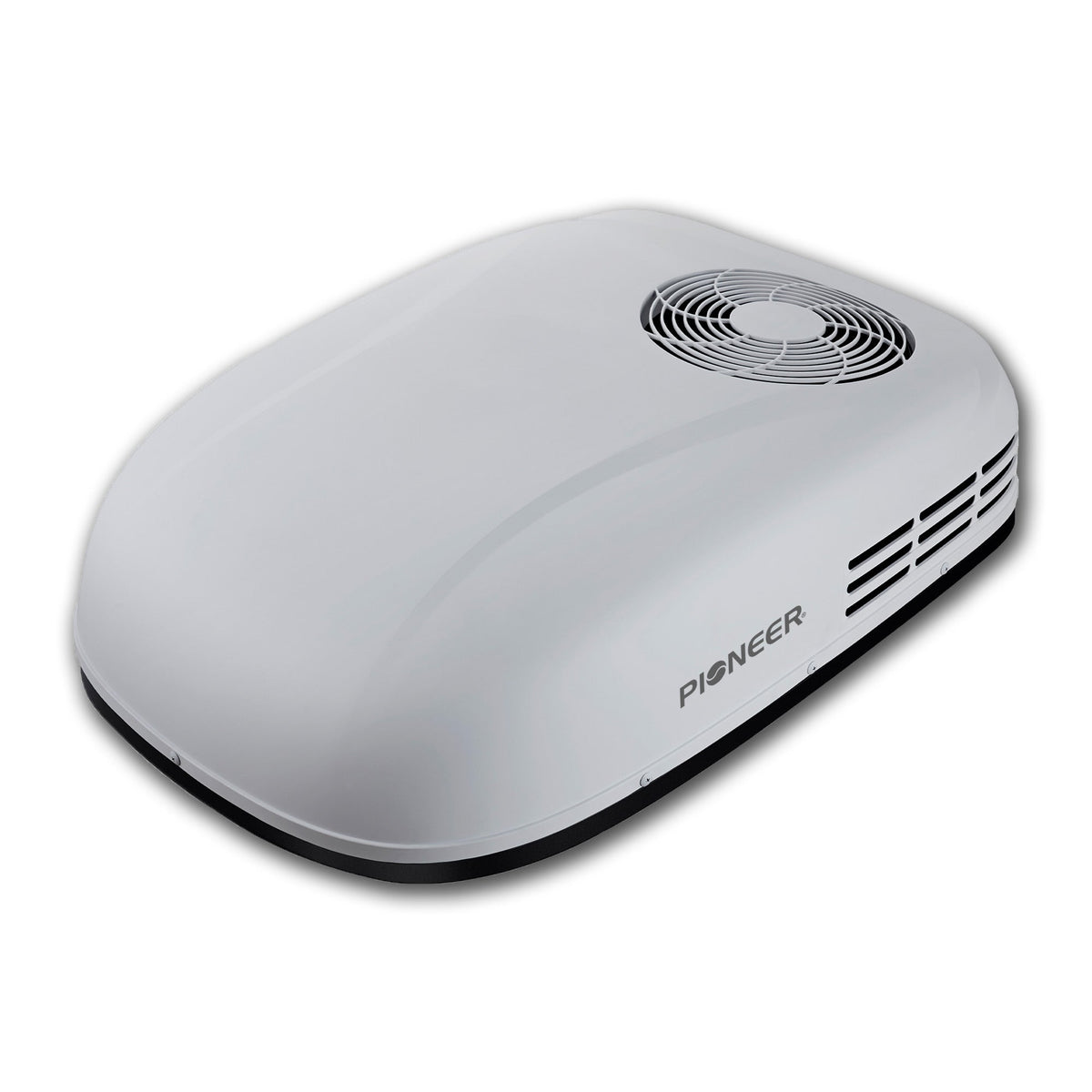

    • RV Rooftop Air Conditioner Heat Pump Unit (PYZ012AZUDCIPD)

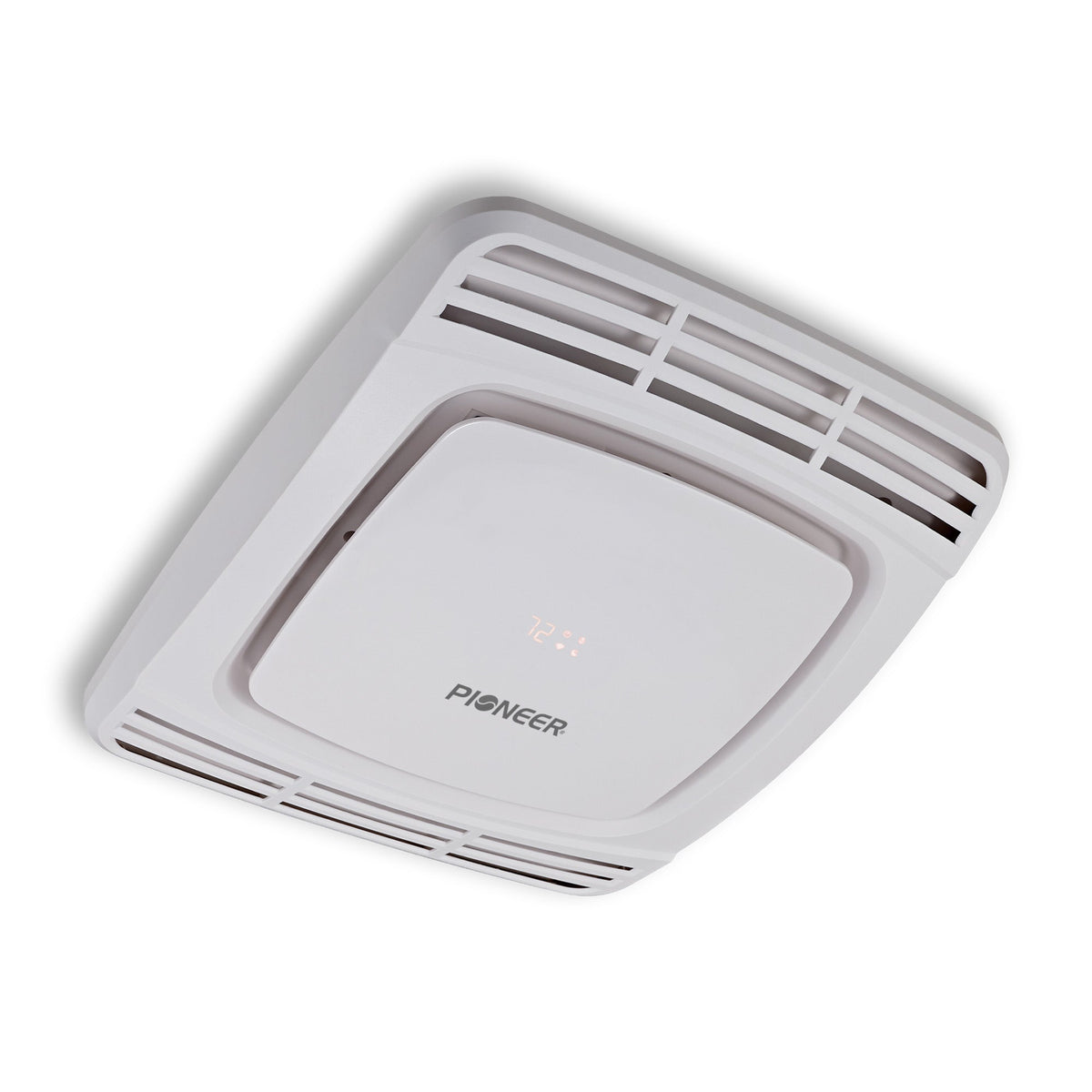

    • Interior Ceiling Assembly with LED Display & Controls
    • Mounting Gasket & Hardware Kit
    • User Manual & Installation Guide

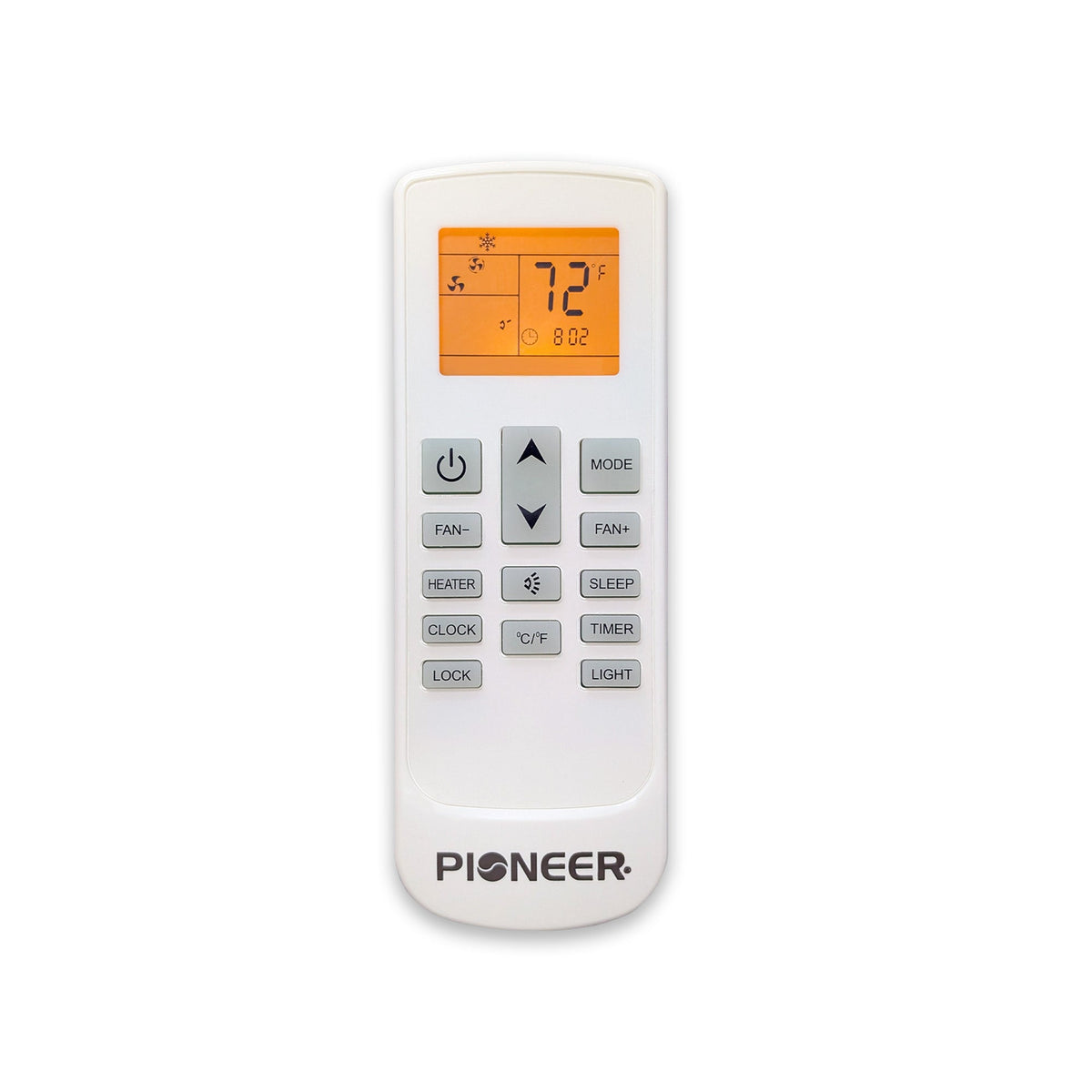

    • Remote Control

    Our Guarantee

    Your comfort and satisfaction are our top priority. The PYZ012AZUDCIPD RV rooftop air conditioner heat pump is backed by:

    • 3 year parts limited warranty
    • 3 year compressor limited warranty
    Technical Information

    Performance Data

    • Rated Cooling Capacity (Range): 7,500 ~ 13,500 BTU/hr
    • Rated Heating Capacity (Range): 7,200 ~ 13,500 BTU/hr
    • Power Supply / Frequency: 115V / 60Hz
    • Cooling Input Power: 850 ~ 1500W
    • Heating Input Power: 750 ~ 1300W
    • Rated Input Current of the Converter: 11A
    • Current (Cooling/Heating): 9.8 ~ 16.9A / 8.9 ~ 14.5A
    • MCA (Minimum Circuit Ampacity): 16A
    • MOP (Maximum Overcurrent Protection): 25A
    • Airflow High/Med/Low (CFM): 290 / 265 / 245
    • Sound Level (from 40 In. Distance, High Fan Speed): 57 dB(A)
    • Refrigerant Type: R32
    • Refrigerant Charge: 19.75 oz

    Unit Physical Data

    • Dimensions (Outdoor Section - L x W x H): 41-5/8 x 29 x 10 (inches)
    • Weight (Outdoor Section): 92.6 lbs
    • Dimensions (Indoor Section - L x W x H): 21-1/4 x 23-1/4 x 2-7/8 (inches)
    • Weight (Indoor Section): 8.2 lbs
    • Standard Roof Opening Sizes: 14-1/2 x 14-1/4 (inch) or 15-3/4 x 15-3/4 (inch)
    • Cable Standard: 12 AWG / <25 ft
    • Circuit Protection Fuse: 20A
