SKU:PYR009AZUDCIPD
Pioneer® 10,000 BTU 115V Under-Bench RV Inverter Packaged Heat Pump Air Conditioner
Pioneer® 10,000 BTU 115V Under-Bench RV Inverter Packaged Heat Pump Air Conditioner
In stock, ready to ship
Regular price
$1,398.00 USD
Regular price
$1,997.00 USD
Sale price
$1,398.00 USD
Unit price
per
Couldn't load pickup availability
Why Buy From Us?
*Excluding Wyoming
$1,398.00
$1,997.00
💰 Exclusive Volume Discounts — Save up to $3000 on Your Order!
$0 – $5,000
5% OFF
$5,000 - $10,000
7% OFF
$10,000 - $25,000
11% OFF
×
🎉 Your Discount Code
- Description
- Technical Information
- Typical Installation
- Product Documentation
- Shipping
- Product Quality Guaranteed
- Contact US
Description

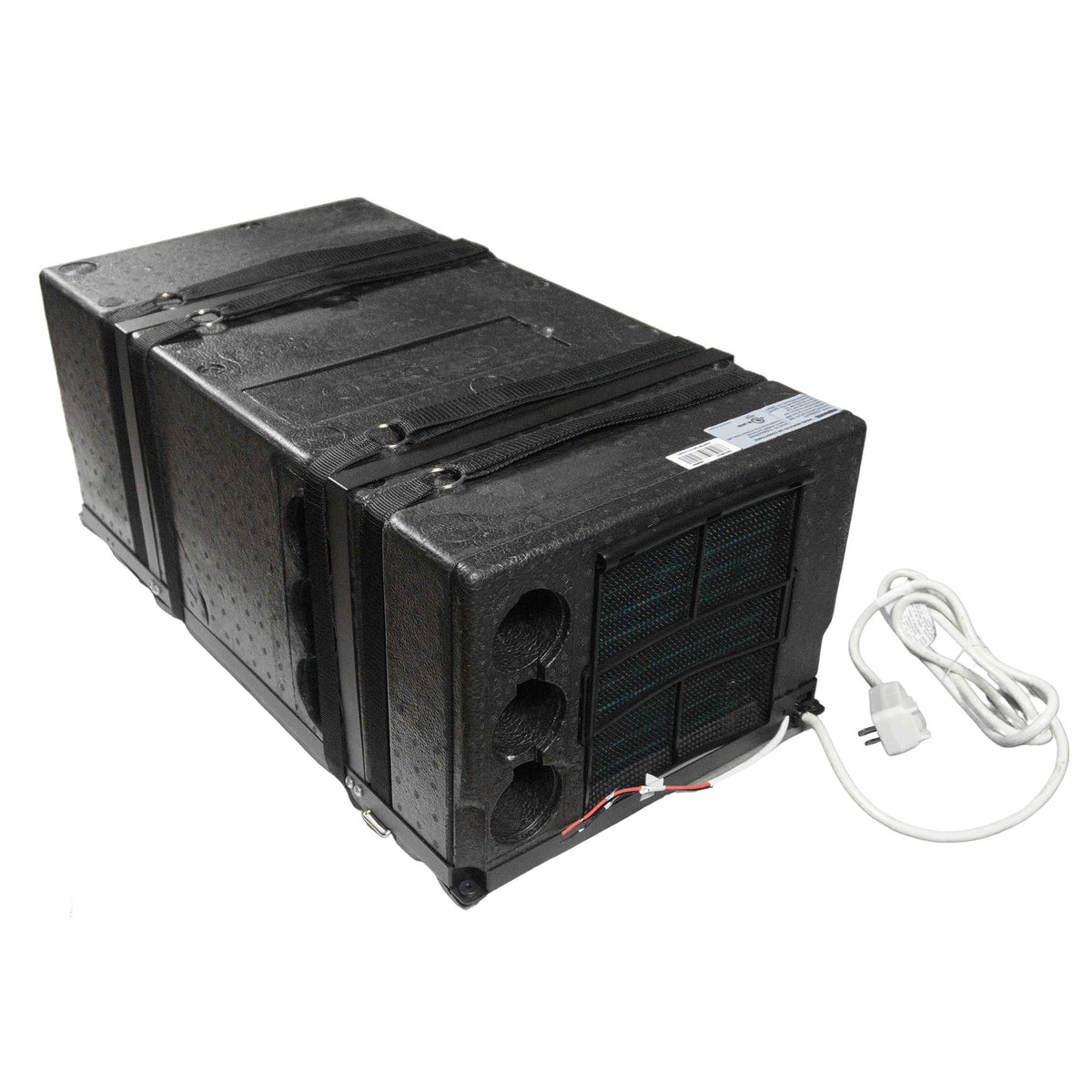

Pioneer® 10,000 BTU 115V Under-Bench RV Inverter Packaged Heat Pump
P/N: PYR009AZUDCIPDProduct Overview Explore the great open road with Pioneer's newest RV heat pump air conditioner package unit. Intended for under-the-bench installations, this low-profile and highly durable package system will keep your motor vehicle at a cozy temperature all year round, doing so quietly and efficiently.
Key Features & Benefits
- Zero In-Rush Current: The inverter technology allows for very low input power requirements, making it easy to run on generators or batteries without expensive soft-starters.
- All-Season Performance: Provides 10,000 BTU of cooling and 9,500 BTU of heating to maintain a cozy temperature all year round, even in cooler weather (operational down to 19°F).
- Ultra-Quiet Operation: Engineered for quiet performance that won't disrupt your journey.

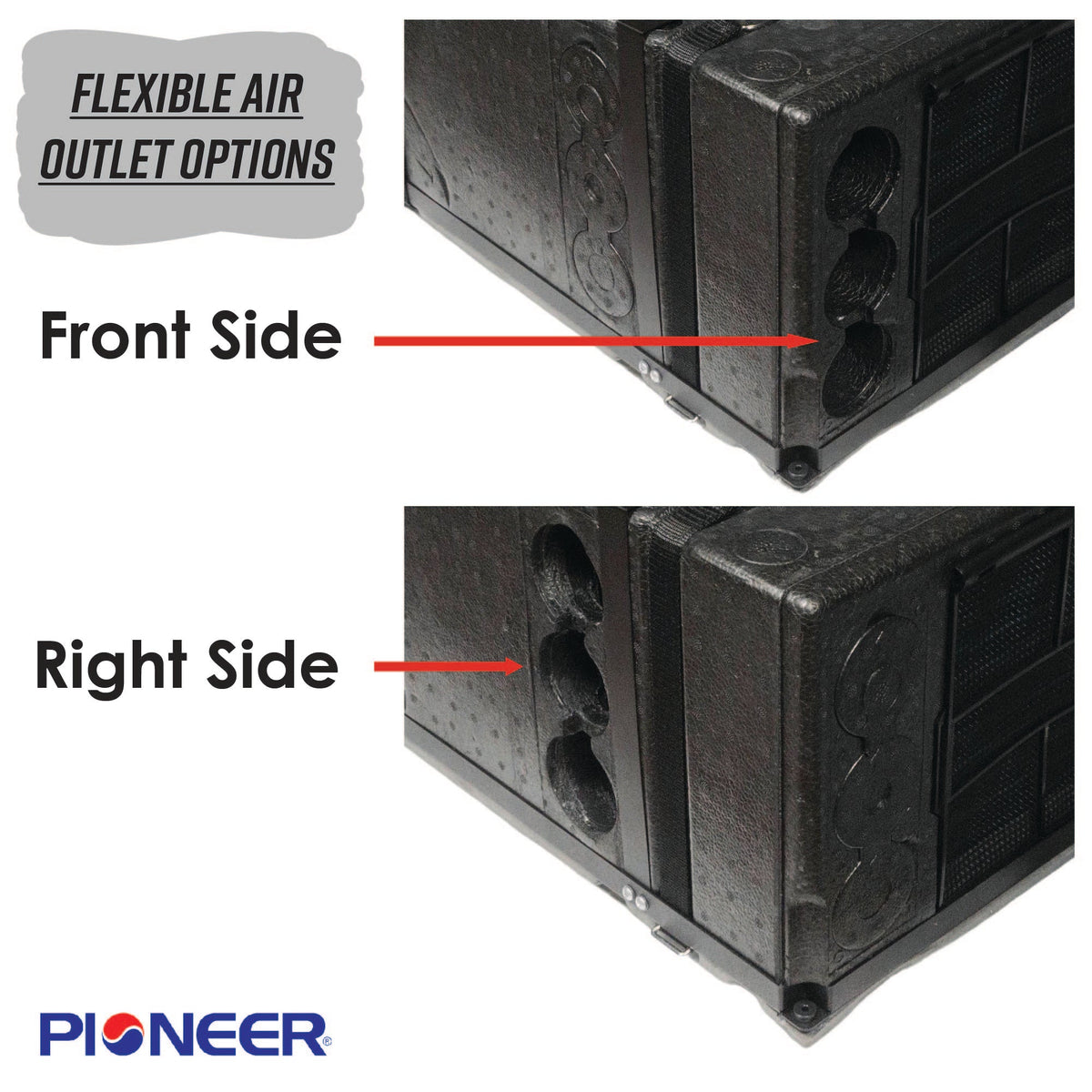

- Flexible Ducting Options: Easily attach three ducts to serve separate areas of the dwelling, with options to connect to the front or side of the system.
- Dual Control Options: Control the system using the included wall-fixed thermostat or the convenient handheld remote controller.
- Ready to Install: The unit comes pre-charged with eco-friendly R32 refrigerant and is ready for straightforward plug-in installation.
- Versatile Use: Perfect for RVs, Skoolies, Tiny Homes, Camper Vans, or any home on wheels.
Technical Specifications at a Glance
| Feature | Specification |
|---|---|
| Cooling Capacity | 10,000 BTU/H |
| Heating Capacity | 9,500 BTU/H |
| Power Supply | 110~120V, 60Hz, 1Ph |
| Cooling Efficiency (EER) | 10.1 |
| Heating Efficiency (C.O.P.) | 3.5 |
| Operational Temp Range | 19 - 104°F |
| Refrigerant Type | R32 |
Warranty & Support The system is UL Listed and backed by a 3-year parts limited warranty and a 5-year compressor limited warranty, offering peace of mind for your long-haul journeys.
Summary
- Cooling capacity: 10,000 BTU/H with 10.1 EER efficiency
- Heating capacity: 9,500 BTU/H with 3.5 C.O.P.
- Voltage: 110~120V, 60Hz, 1Ph
- Operational Temperature Range: 19 - 104°F
- Pre-charged with R32 refrigerant and ready to install
- UL Listed
- Perfect for RVs, Skoolies, Tiny Homes, Camper Vans, or any home on wheels
What's Included
- Pioneer RV Under-Bench Heat Pump AC System

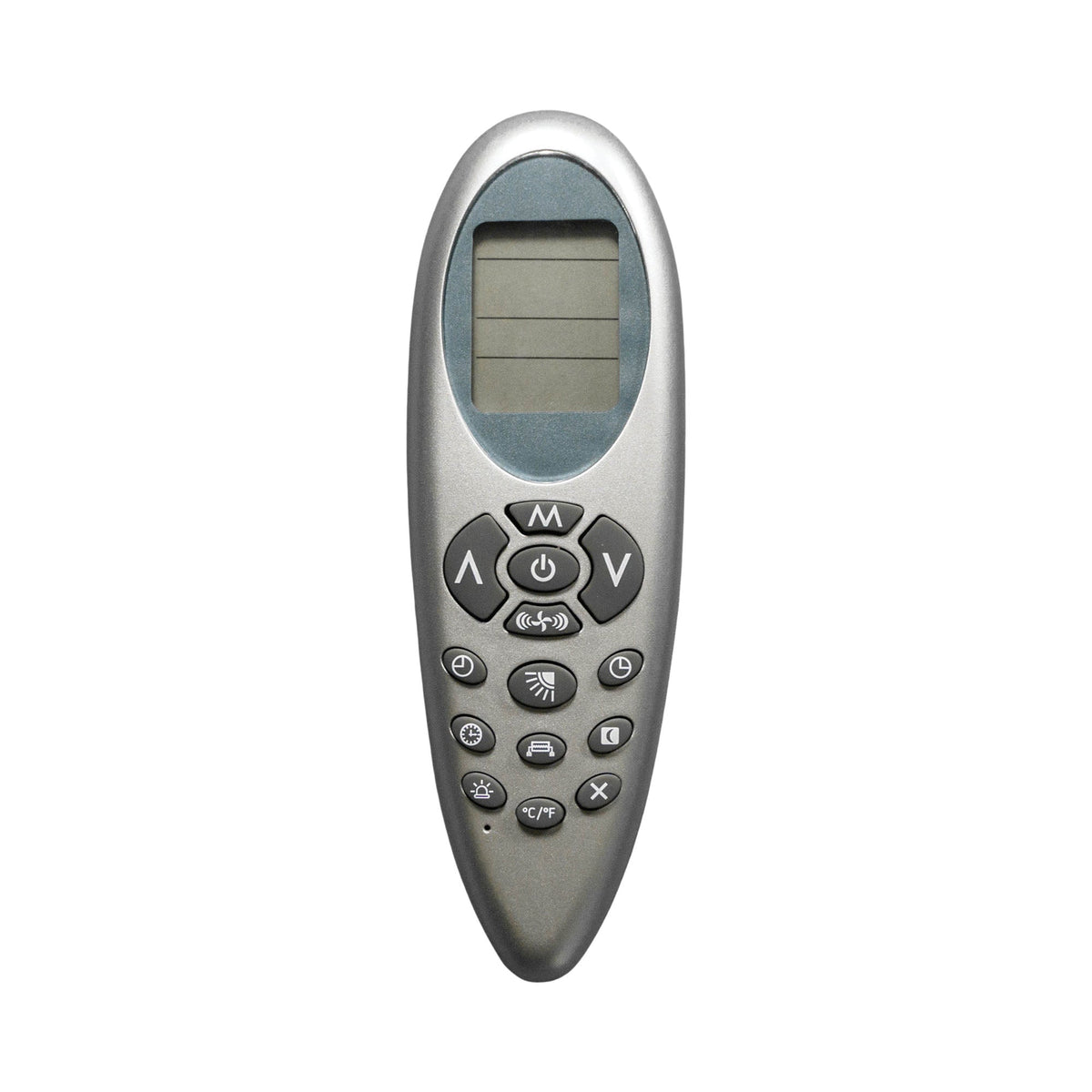

- Handheld Remote Controller w/ batteries and cradle

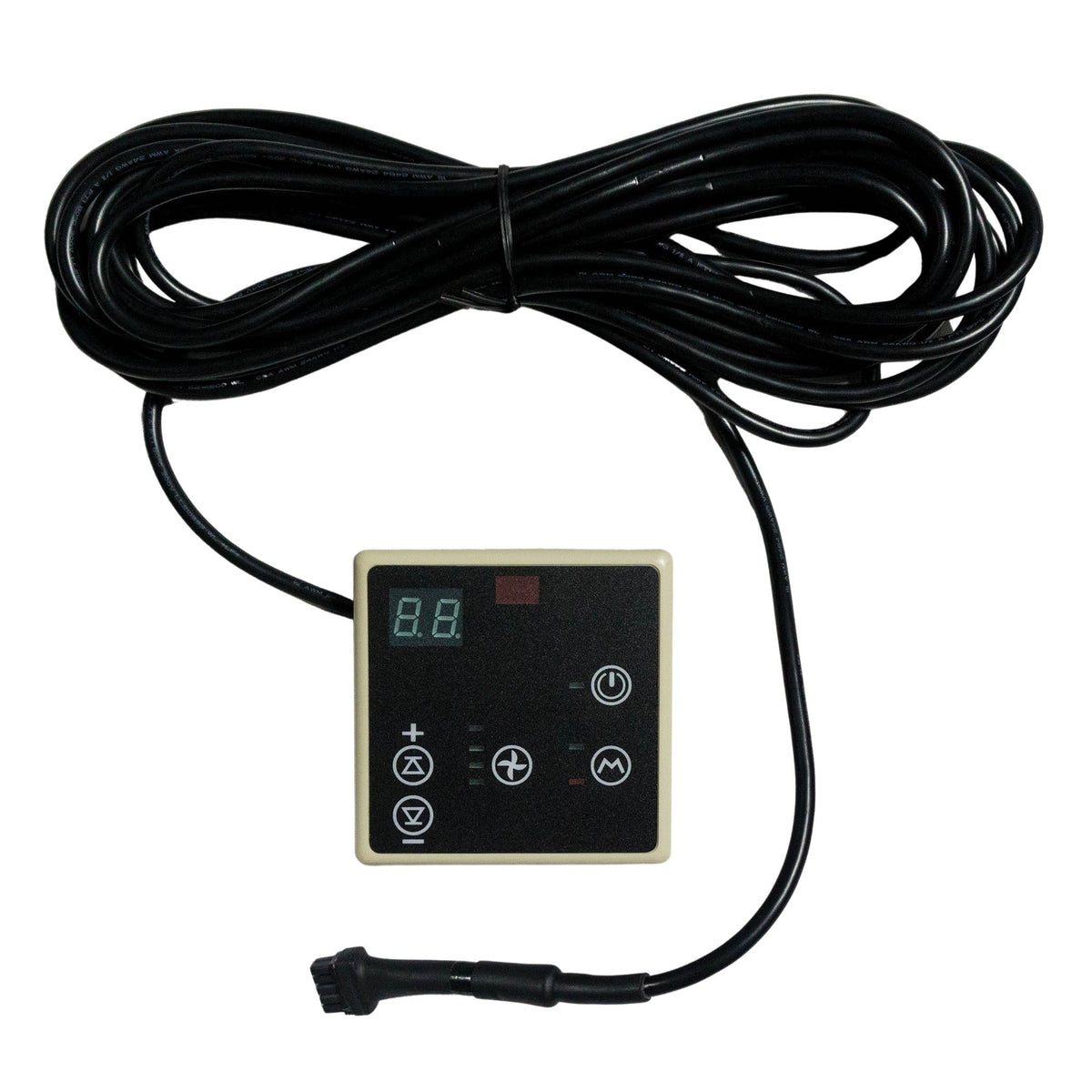

- Wired Thermostat w/ cradle

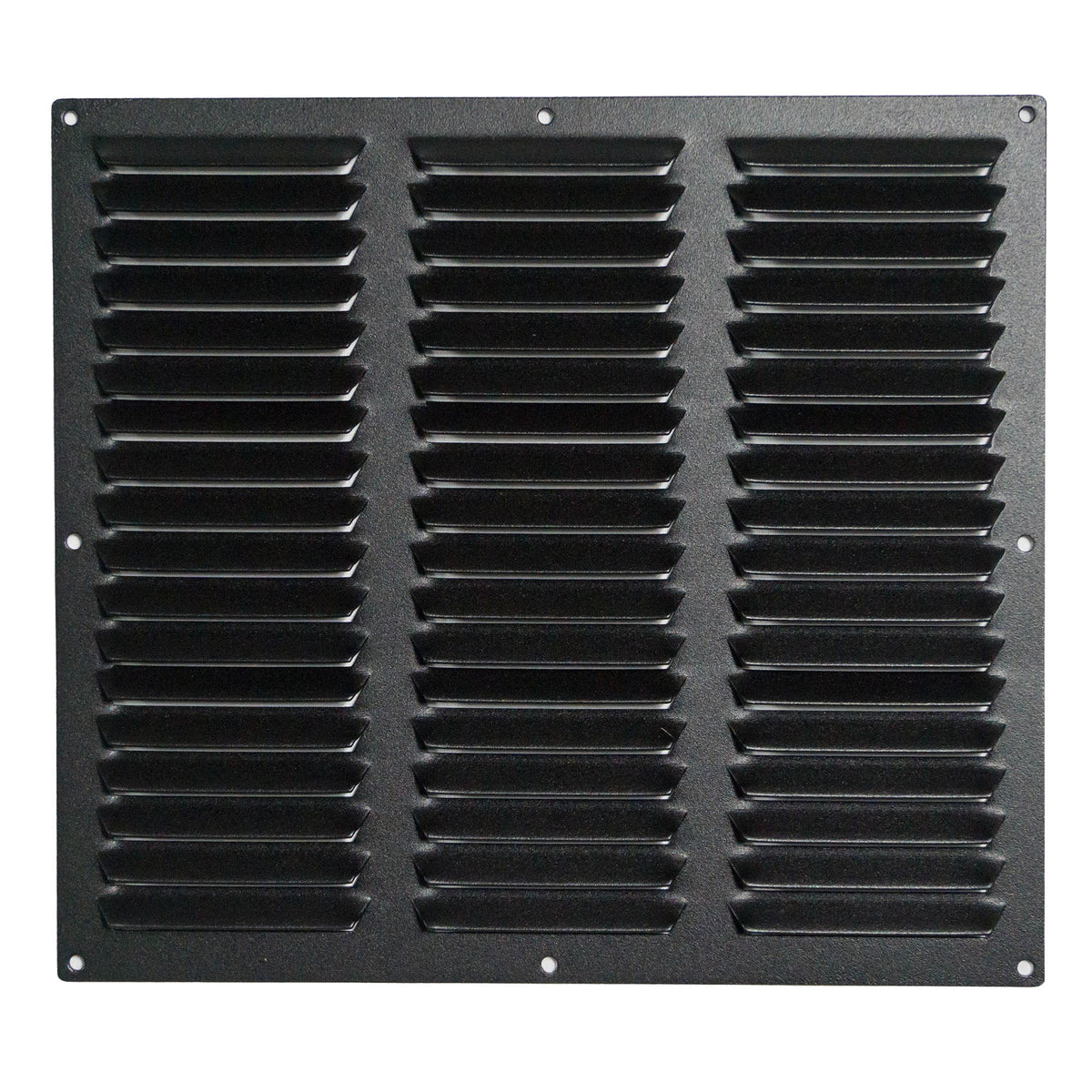

- Highly Durable Metallic Return Air Grille
- Drainage Tubing
- Installation Hardware
- Installation and User's Manual
Our Guarantee
- 3 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Performance Data
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 10,000 BTU/h
- Cooling EER: 10.1 BTU/w.hr
- Maximum Cooling Consumption: 8.6A / 989W
- Heating Rated Capacity: 9,500 BTU/h
- Heating C.O.P.: 3.51 W/W
- Maximum Heating Consumption: 6.9A / 794W
- Refrigerant Type: R32
- Suitable Volume: 1,060 m3
- Fan Speeds: 3 (Low/Med/High)
Unit Physical Data
- Treated Volume of Air (Max): 206 CFM
- Water Protection Class: IPX-5
- Noise Level: <40 dB(A)
- Weight: 61 lbs

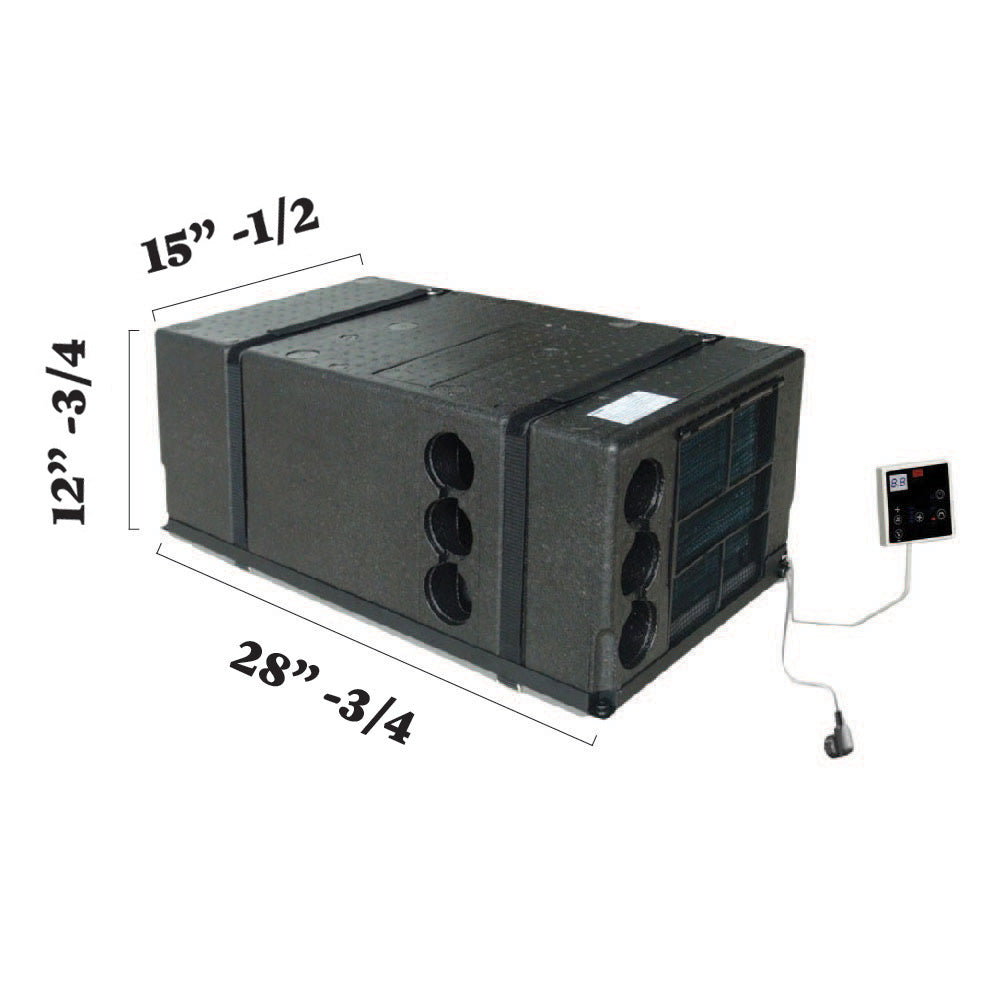

- Dimensions (LDH): 28"-7/8 x 16" x 11"-5/8

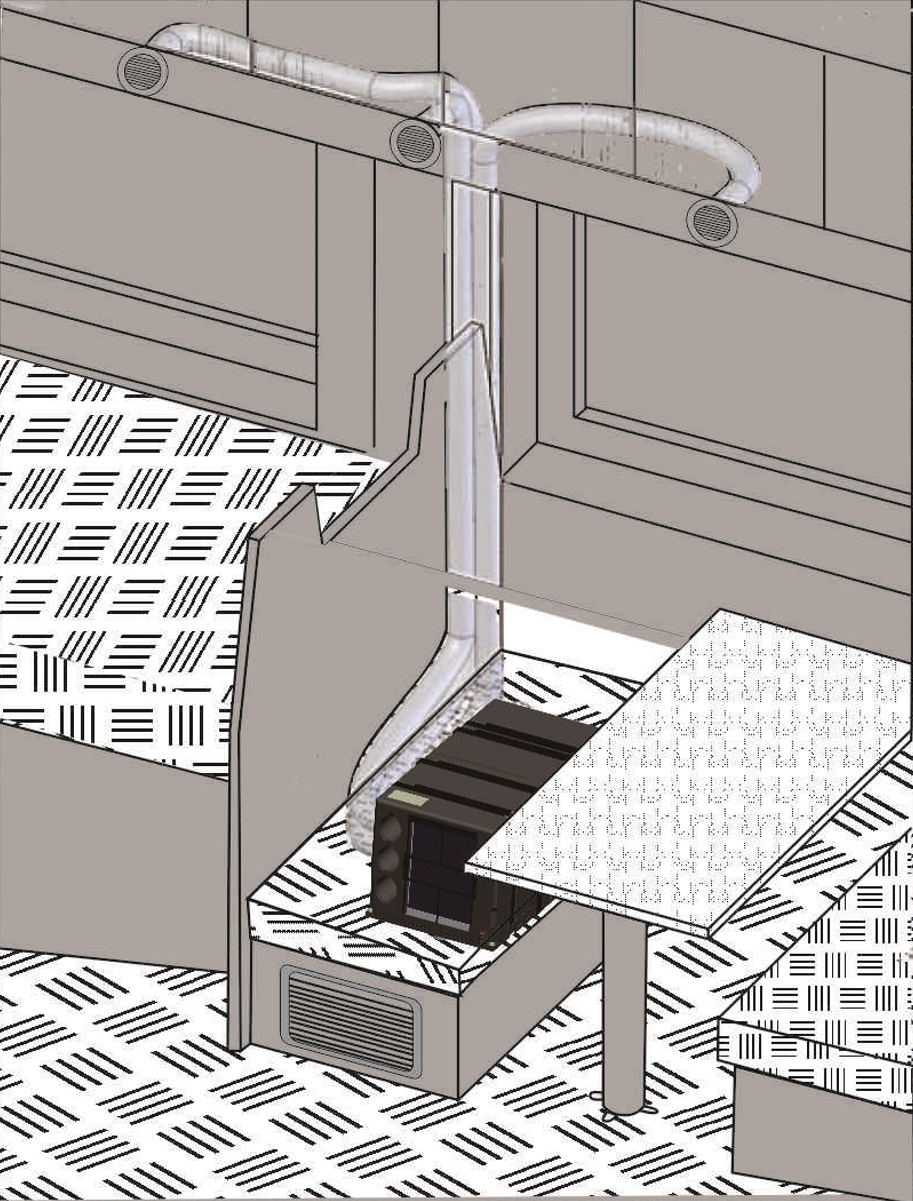

Typical Installation
