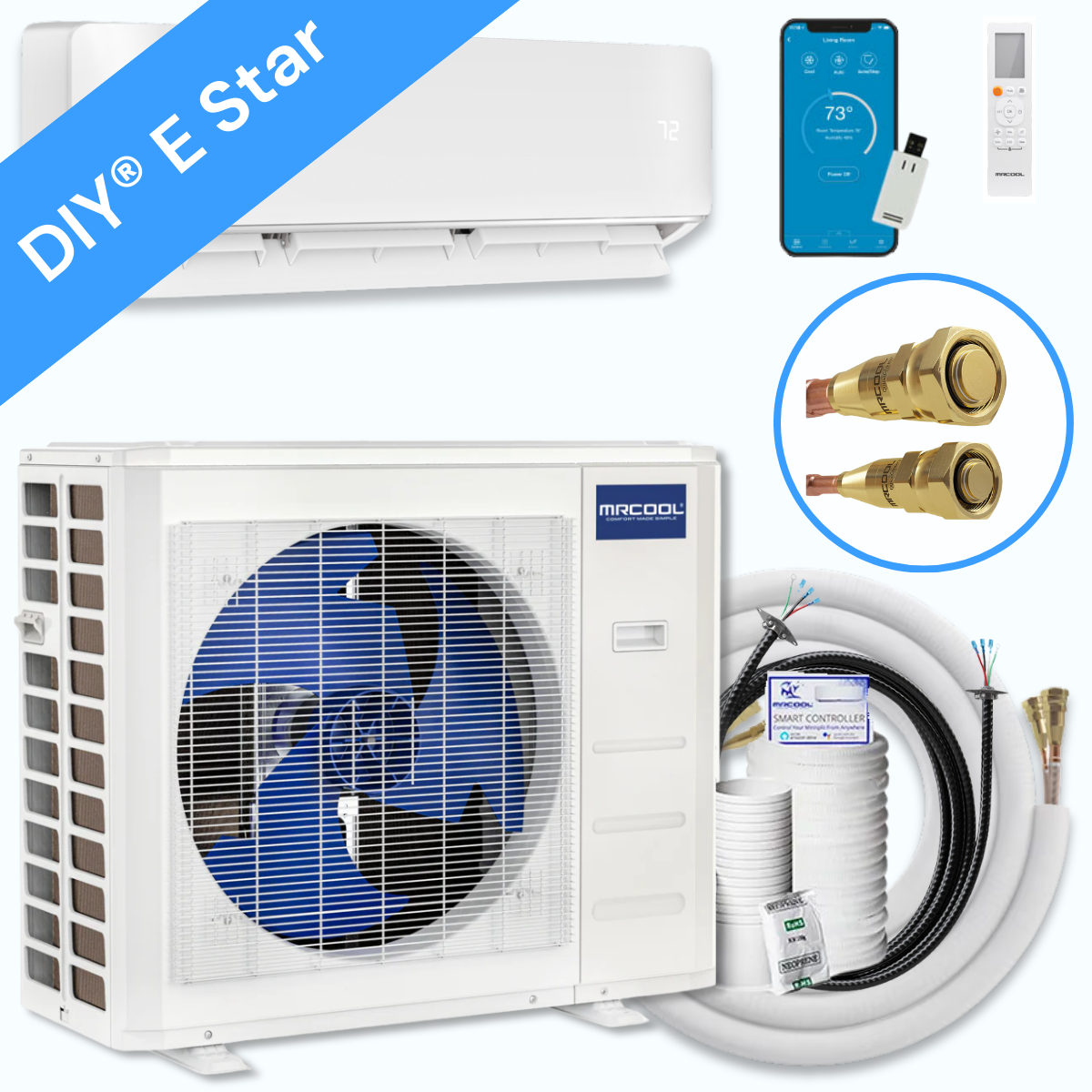

MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Complete System 230V with 25 ft. DIY Quick Connect Line Set and DIYPRO Cable, DIY-36-HP-WM-230D25-O

MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Complete System 230V with 25 ft. DIY Quick Connect Line Set and DIYPRO Cable, DIY-36-HP-WM-230D25-O

Authorized Dealer
In stock, ready to ship

Regular price $3,769.00 USD
Regular price $4,434.00 USD Sale price $3,769.00 USD
Sale Sold out

Why Buy From Us?

Lowest Prices
FREE EXPRESS SHIPPING
Warranty Included
Account Rep — (844) 777-0683
No Sales Tax*

*Excluding Wyoming

View full details
MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Complete System 230V with 25 ft. DIY Quick Connect Line Set and DIYPRO Cable, DIY-36-HP-WM-230D25-O
$3,769.00 $4,434.00

Estimated Delivery Timeline

Order Placed

Ships Out

Delivered

Need help choosing a Product?

Call (844) 777-0683

Speak with a product expert in seconds.

💰 Exclusive Volume Discounts — Save up to $3000 on Your Order!

$0 – $5,000
5% OFF
$5,000 - $10,000
7% OFF
$10,000 - $25,000
11% OFF
Description

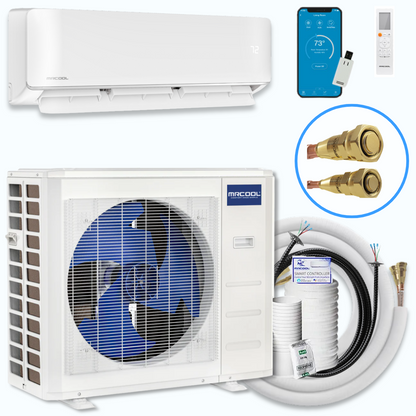

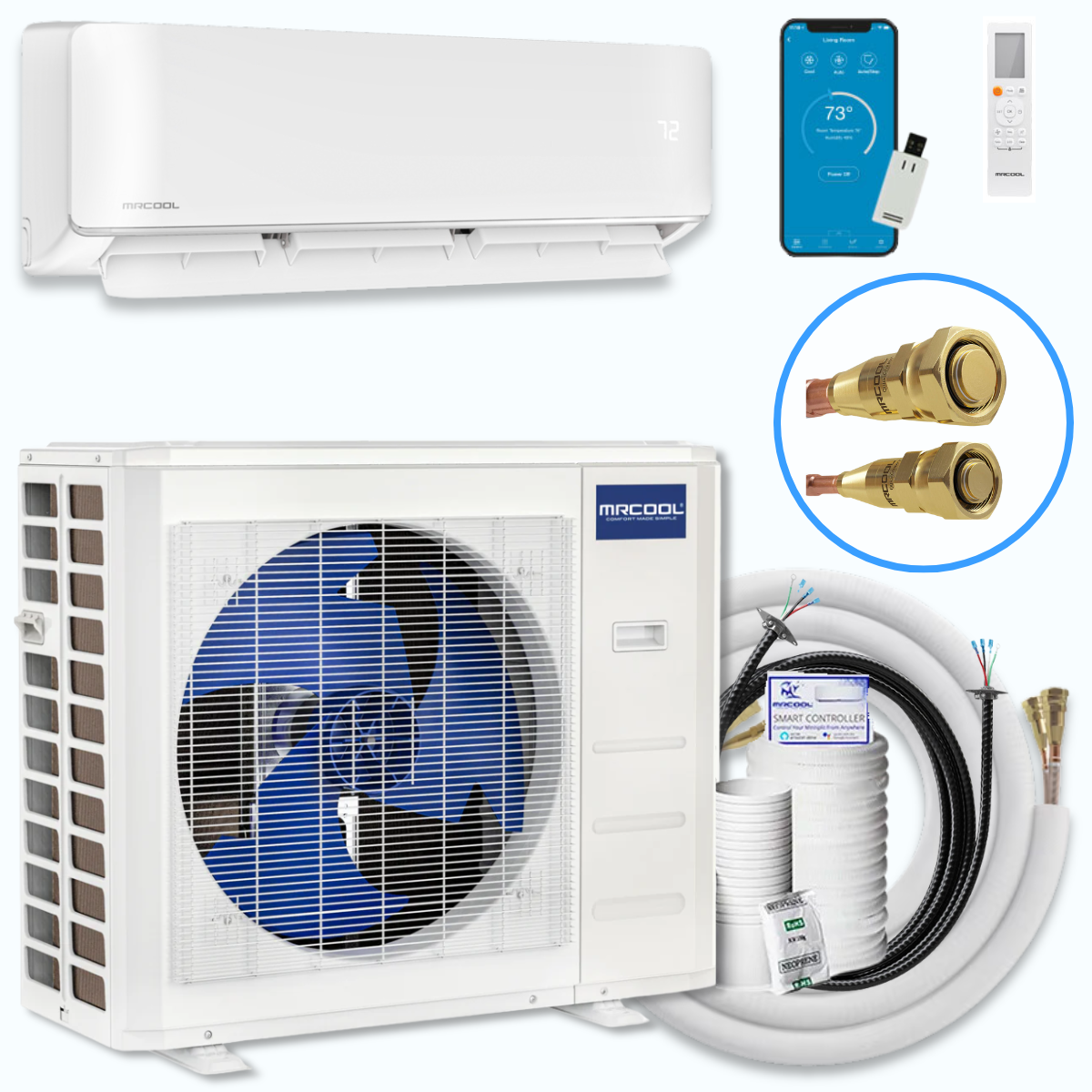

MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Complete System 230V

— High-Performance DIY Climate Control for Larger Spaces

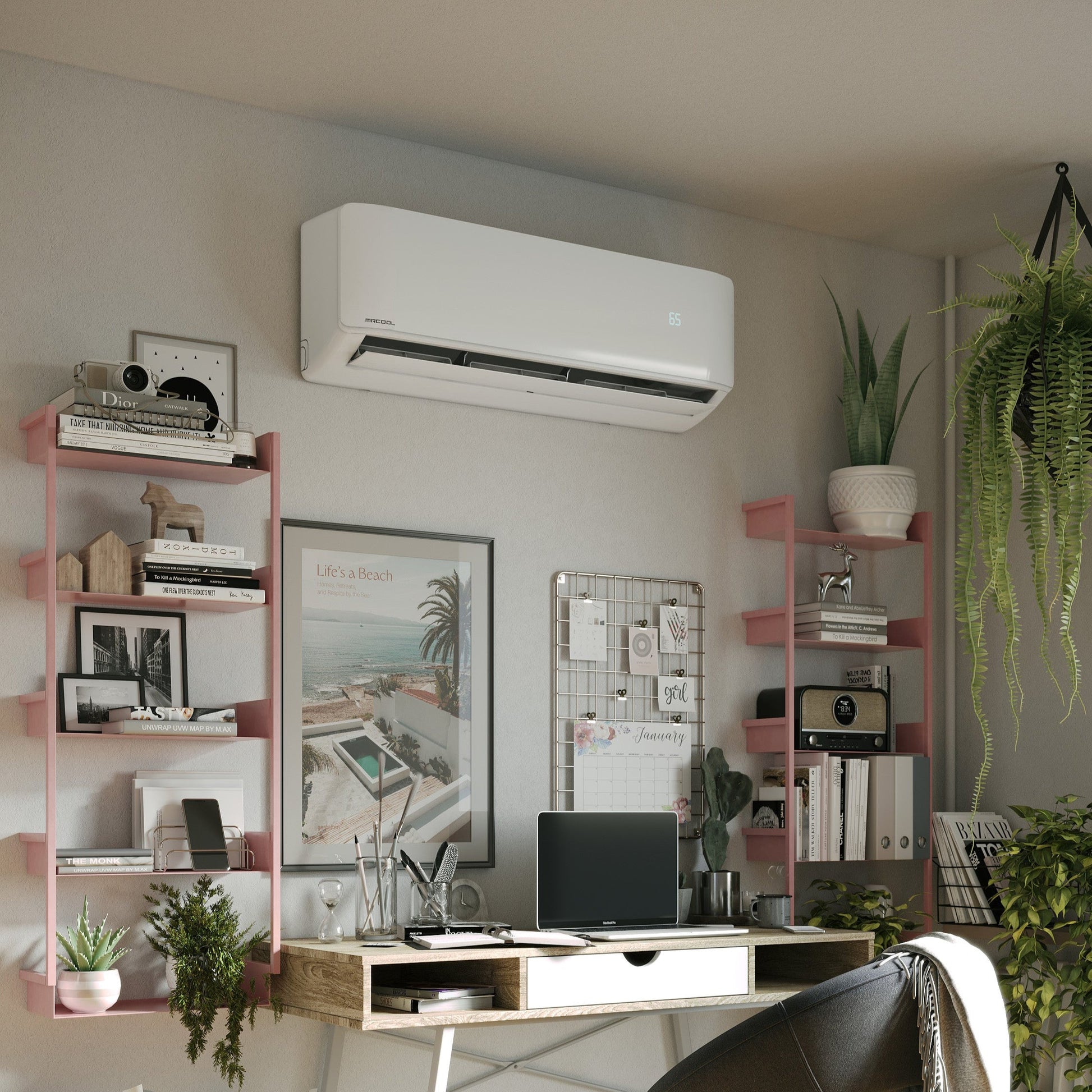

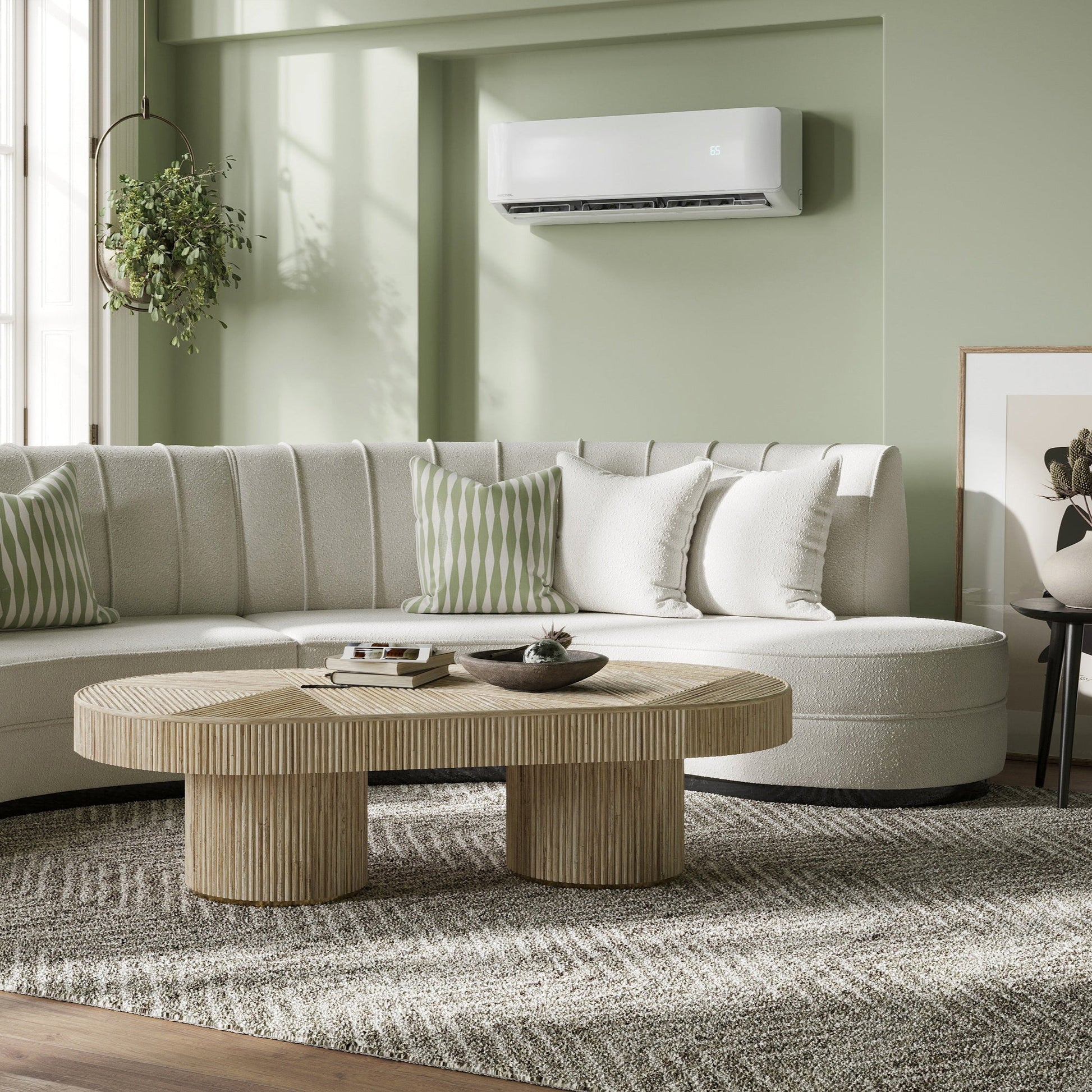

Upgrade your heating and cooling with the MRCOOL DIY® 5th Gen 36,000 BTU Single Zone Mini Split system, engineered for effortless DIY installation and professional-grade performance. Ideal for rooms ranging from 1,000 to 1,500 sq. ft., this system combines energy-efficient operation, durable components, and versatile wireless control options to provide year-round comfort without the need for professional installation.

Why HVAC Professionals and DIY Installers Choose the MRCOOL DIY® 36K Mini Split:

  • America’s #1 DIY Mini Split: Widely trusted for quick, hassle-free installation and reliable performance across the nation.

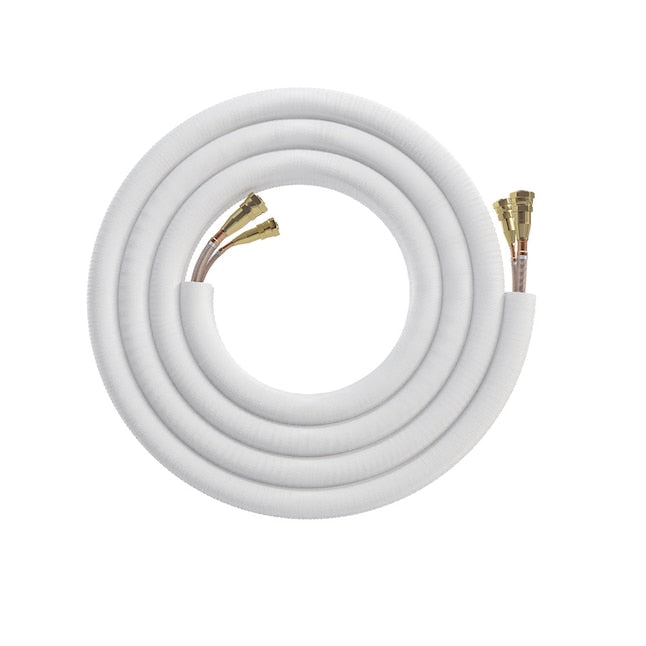

  • DIY® QuickConnect® Line Set: Pre-charged with eco-friendly R-454B refrigerant, enabling vacuum-free, fast, and simple line set connection.
  • Eco-Friendly Refrigerant: Uses R-454B refrigerant with significantly lower Global Warming Potential (GWP) than R-410A refrigerants, supporting environmental sustainability and enhanced efficiency.

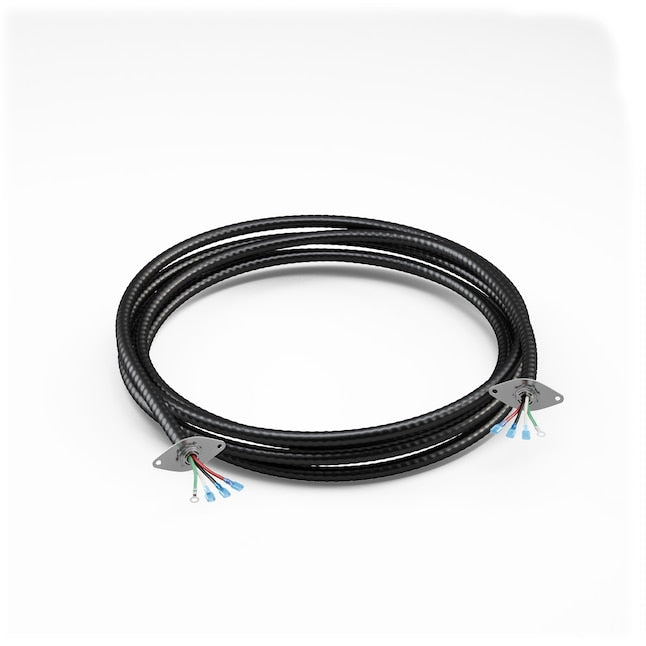

  • Durable DIYPRO® Cable: Designed for outdoor exposure and resistant to damage from wildlife, eliminating the need for additional conduit and simplifying installation.
  • Flexible Wireless Control: Operate the system via included remote control, SmartHVAC app (Apple and Android compatible), or voice commands through Amazon Alexa and Google Assistant.
  • Follow Me Function: Ensures consistent comfort by adjusting airflow based on the remote’s location within the room.
  • Dry Mode: Dehumidifies indoor air to reduce excess moisture, improving air quality and occupant comfort.

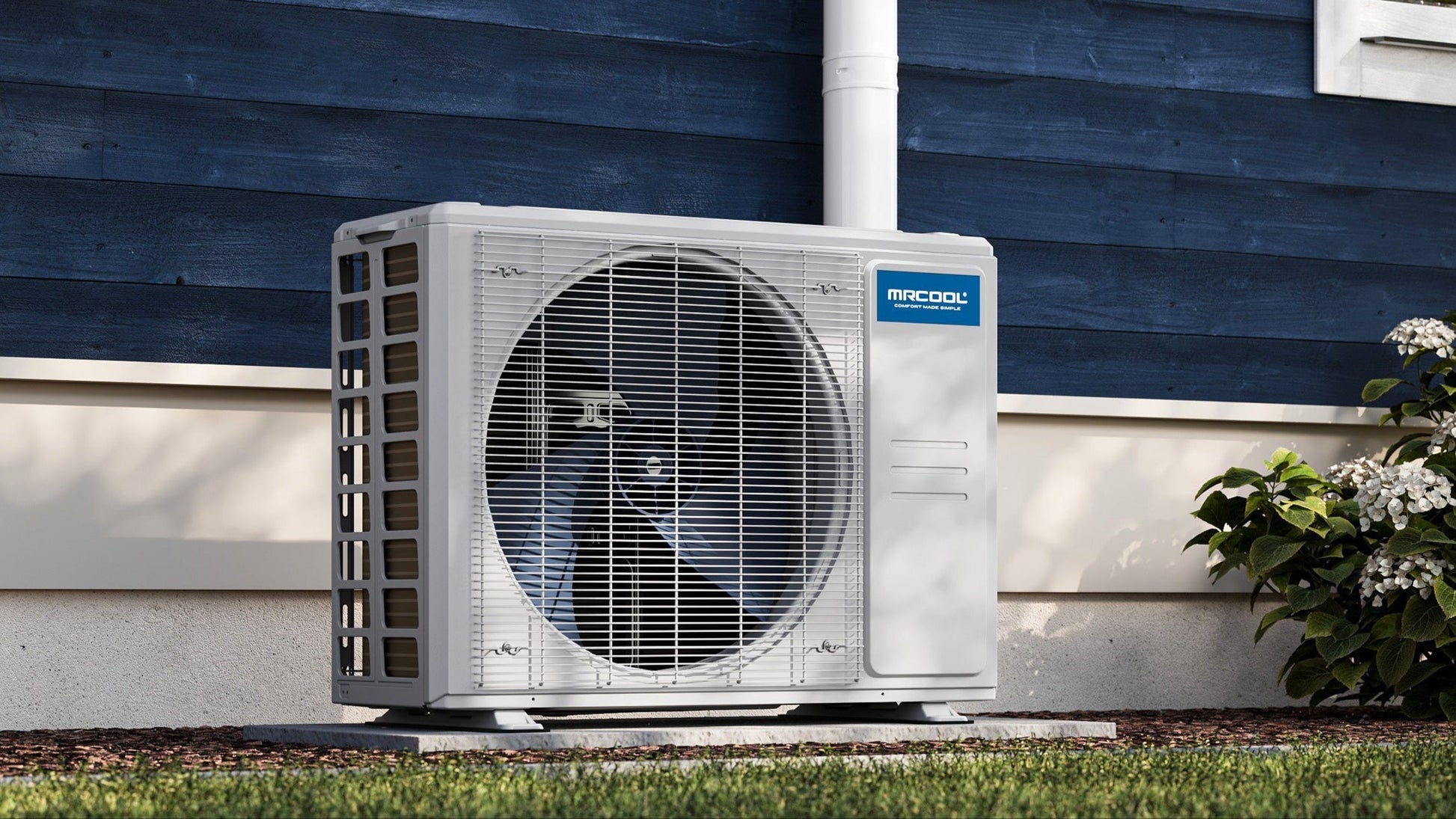

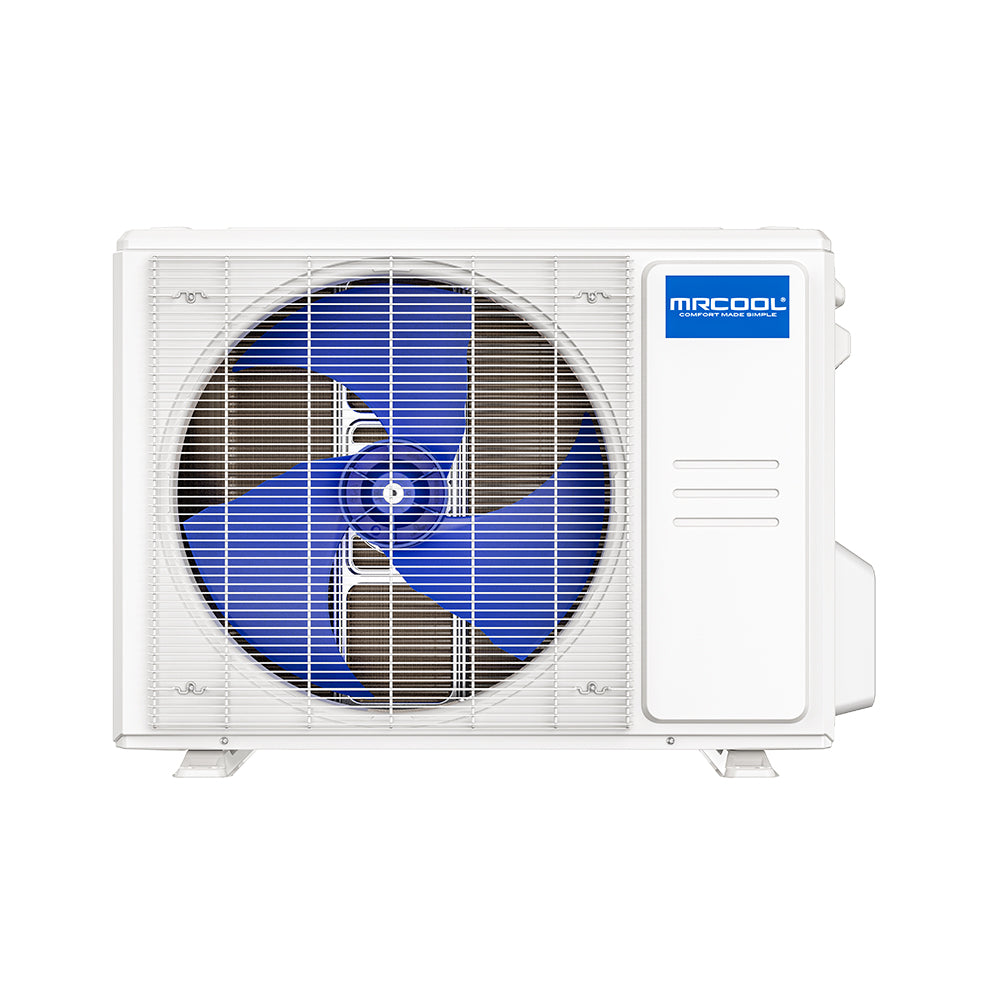

  • Gold Fin® Condenser: Corrosion-resistant coating ideal for coastal or harsh environments, extending system longevity.
  • Industry-Leading Warranty: Includes a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty for long-term peace of mind.
  • Certified Excellence: Intertek listed (5031495), guaranteeing safety, reliability, and compliance with industry standards.

The MRCOOL DIY® 5th Gen 36,000 BTU Single Zone Mini Split system provides a powerful, energy-efficient, and easy-to-install solution for larger spaces, delivering professional HVAC performance with the convenience of DIY installation.



Product Specs
Dimensions & Weight
Condenser Dimensions 37.24 W" x 16.14 D" x 31.89 H"
Condenser Weight 152.12 lbs / 69 kg

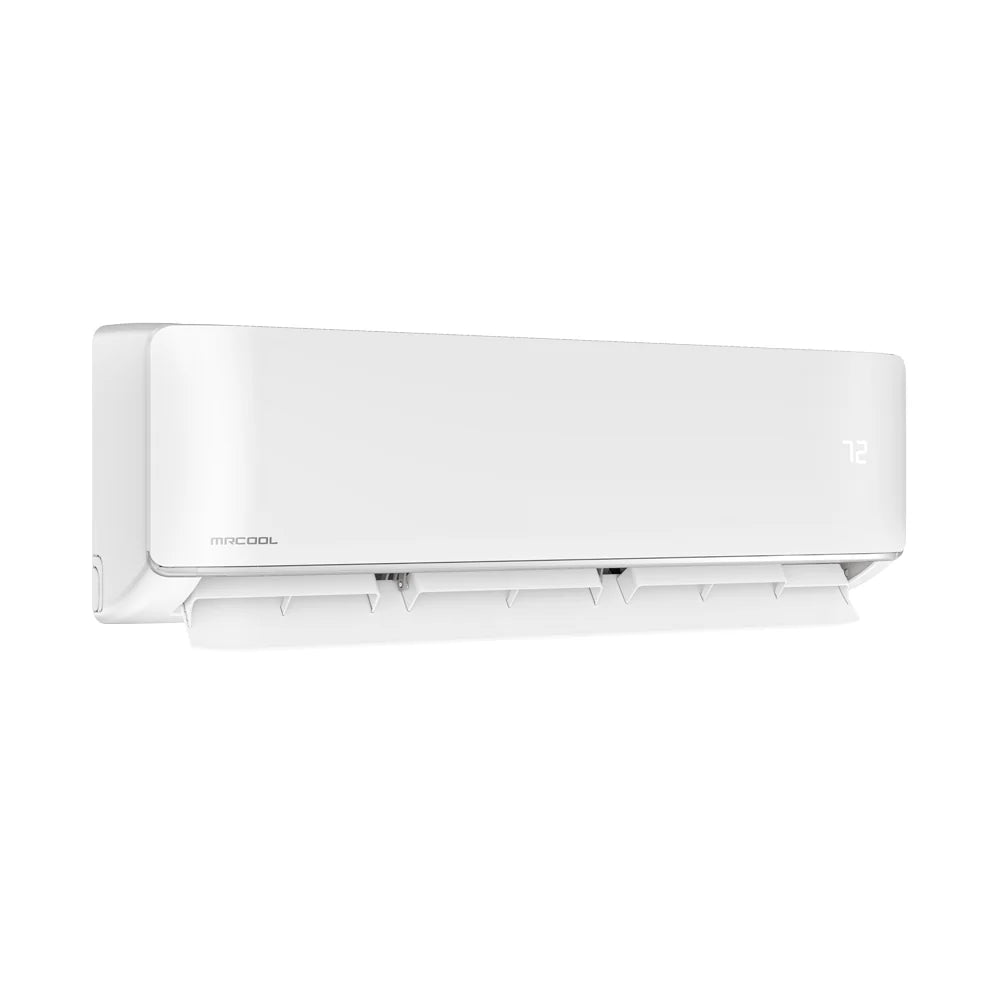

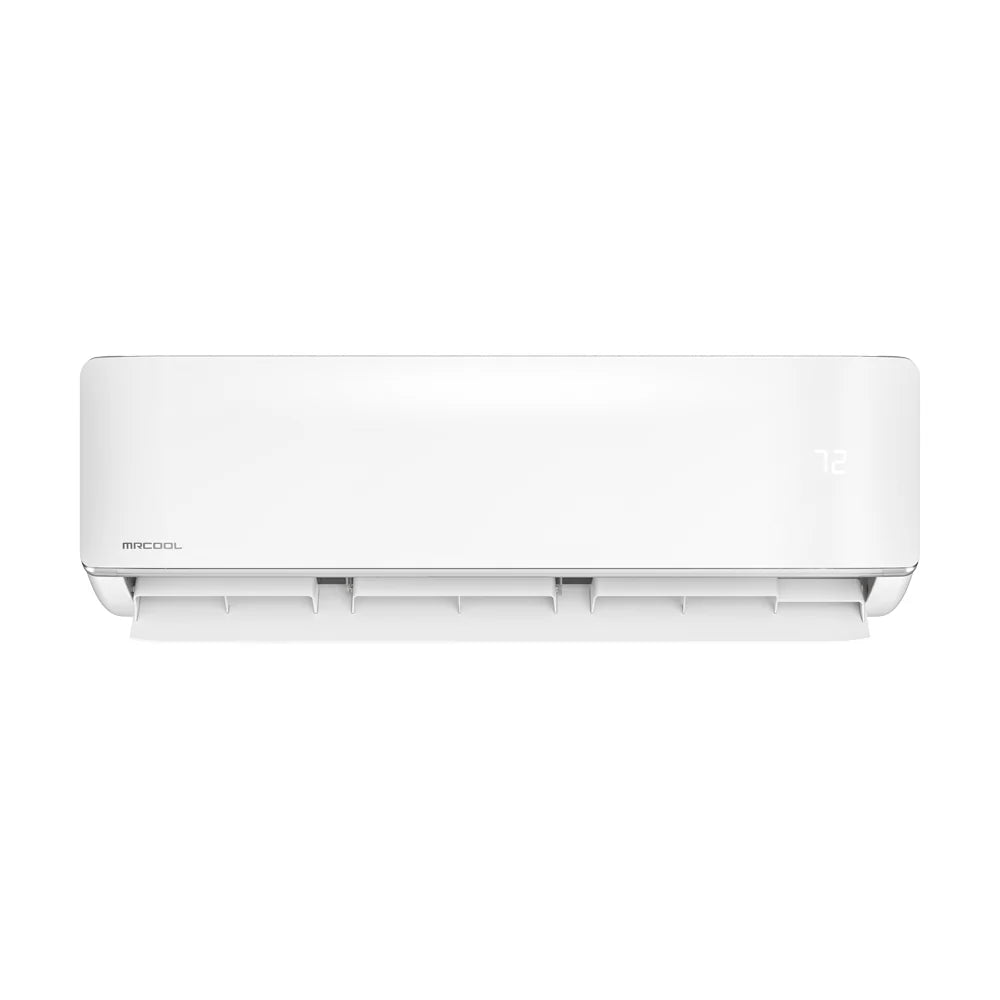

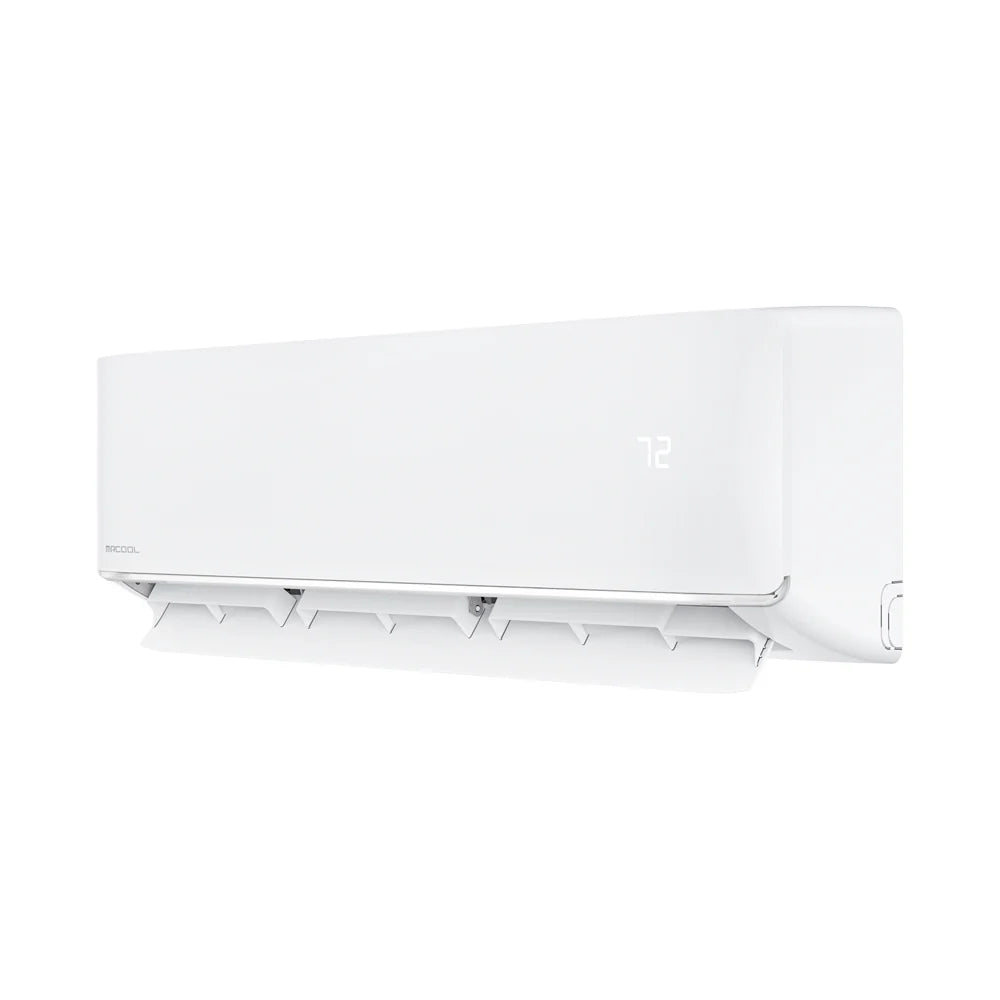

Air Handler Dimensions 49.57 W" x 11.10 D" x 14.25 H"
Air Handler Weight 48.729 lbs / 22.1 kg
Capacity & Performance
Zone Capacity 1
Cooling Capacity 36,000 BTU
EER2 8.5
SEER2 18
Heating Capacity 36,000 BTU
HSPF2-4 8.5
HSPF2-5 6.5
Coverage Area 1,000 to 1,500 sq ft.
Indoor Noise Level (Hi/Mi/Lo) 55.5/49.5/43.5/38.0/27.5 dB(A)
Outdoor Noise Level 60.5 dB(A)
Electrical Requirements
Voltage 208-230V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 35A
Min Circuit Ampacity 33A
Refrigerant & Piping
Refrigerant Type R-454B
Refrigerant Volume 109.70 oz
Liquid Line Size 3/8"
Suction Line Size 5/8"
Max Line Set Length 213.2 ft.
Features
Inverter DC
Compressor Type Rotary
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes
Certifications & Warranty
Certifications UL Listed, ETL Listed, AHRI Certified
Warranty 7 Years Compressor
5 Years Parts
Extended Limited Lifetime Replacement
*If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty
**The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.
