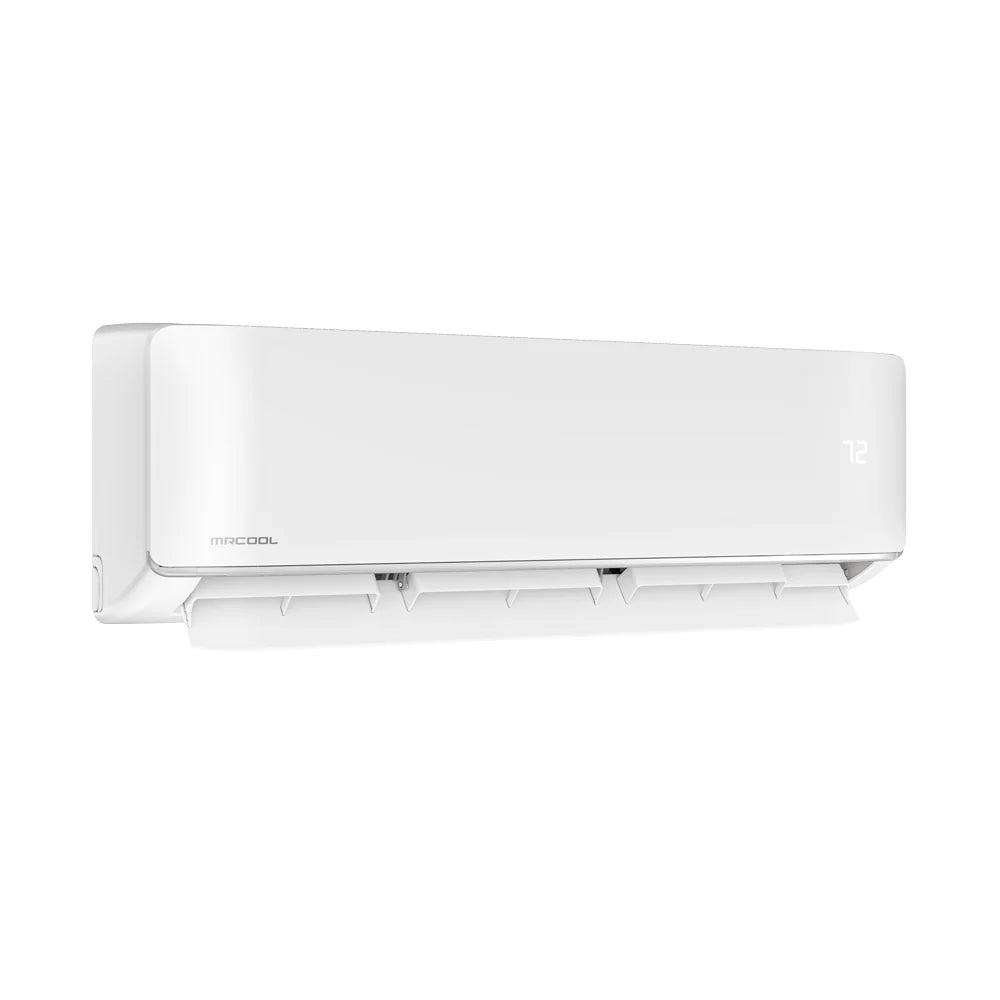

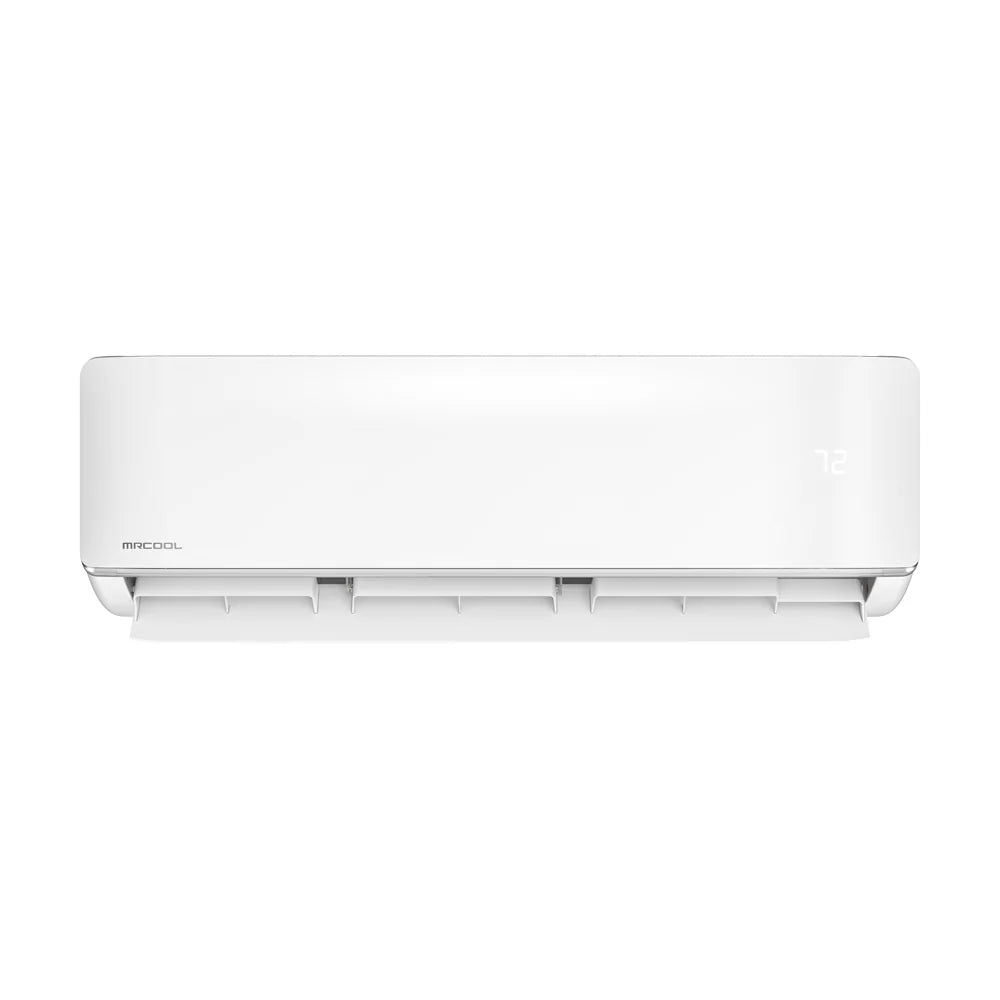

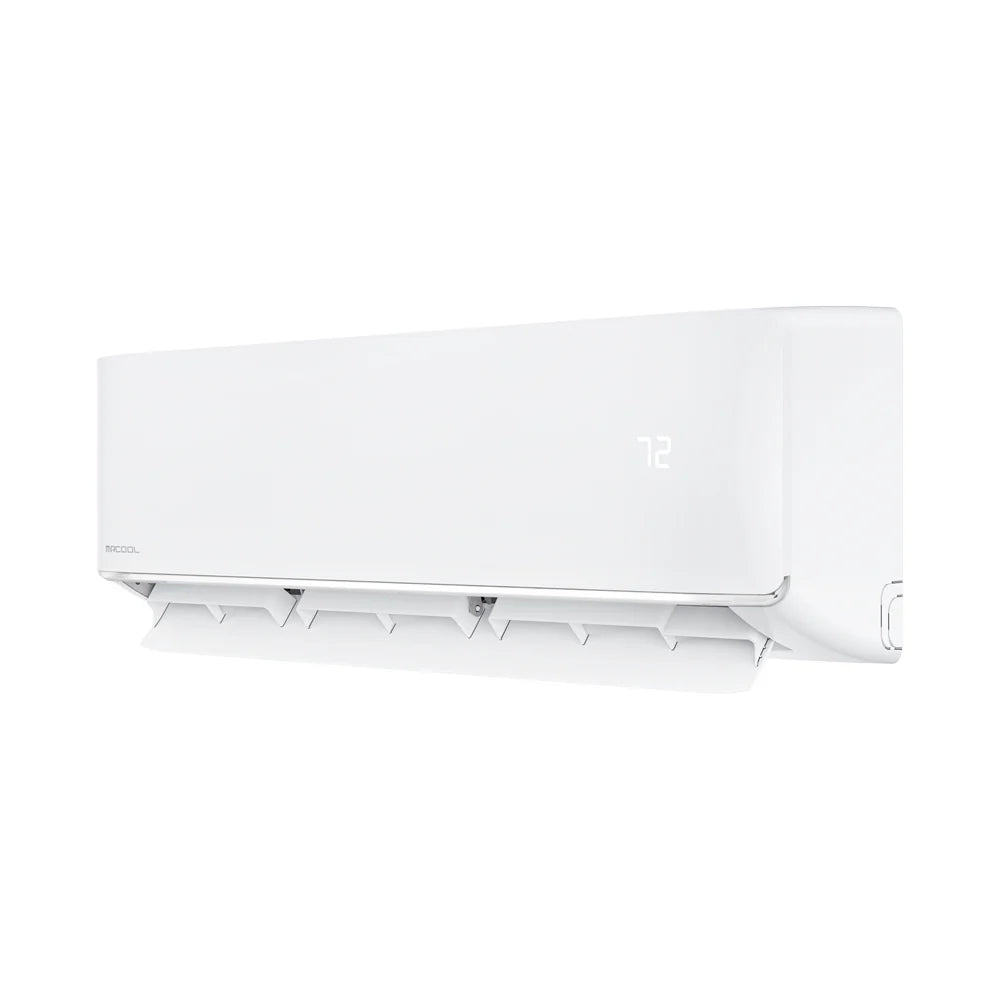

MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Air Handler 230V
— Efficient Indoor Unit for Large Spaces
The MRCOOL DIY® 5th Gen 36,000 BTU Single Zone Mini Split Air Handler is engineered for easy DIY installation and reliable year-round heating and cooling in spaces from 1,000 to 1,500 sq. ft. Designed to work seamlessly with the MRCOOL DIY® outdoor condenser, this air handler offers advanced comfort features, wireless control options, and energy-efficient operation.
Key Features for HVAC Professionals and DIY Installers:
- DIY Installation: Tool-free, straightforward setup designed for homeowners and professionals with no prior HVAC experience, reducing installation time and costs.
- Compatible with DIY® QuickConnect® Line Set: Works with pre-charged R-454B refrigerant line sets for vacuum-free, fast connection and system startup.
- Environmentally Friendly Refrigerant: Supports R-454B refrigerant, which has a lower Global Warming Potential (GWP) than R-410A, reducing environmental impact while improving efficiency.
- Durable DIYPRO® Cable: Eliminates the need for electrical conduit; engineered for durability and resistance to outdoor elements and wildlife.
- Wireless Control Options: Operate via included remote, SmartHVAC app (Apple and Android compatible), or voice commands through Amazon Alexa and Google Assistant.
- Follow Me Function: Enhances comfort by adjusting airflow based on the remote’s location within the room for targeted temperature control.
- Dry Mode: Acts as a dehumidifier to reduce excess moisture, improving indoor air quality and occupant comfort.
- Industry-Leading Warranty: Includes a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty for peace of mind.
- Certified Quality: Intertek listed (5031495), ensuring compliance with safety, reliability, and performance standards.
The MRCOOL DIY® 5th Gen 36,000 BTU Single Zone Mini Split Air Handler delivers efficient, reliable, and easy-to-install indoor climate control for large spaces, combining professional-grade performance with DIY convenience on 230V power.
| Dimensions & Weight | |
|---|---|
| Dimensions | 49.57 W" x 11.10 D" x 14.25 H" |
| Mount Type | Wall |
| Weight | 48.729 lbs / 22.1 kg |
| Capacity & Performance | |
| Cooling Capacity | 36,000 BTU |
| EER2 | 8.5 |
| SEER2 | 18 |
| Heating Capacity | 36,000 BTU |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.5 |
| Coverage Area | 1,000 to 1,500 sq ft. |
| Indoor Noise Level (Hi/Mi/Lo) | 55.5/49.5/43.5/38.0/27.5 dB(A) |
| Number of Speeds | 5 |
| Electrical Requirements | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Features | |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Certifications & Warranty | |
| Certifications | UL Listed, ETL Listed, AHRI Certified |
| Warranty | 5 Years Parts |
