SKU:DIY-24-HP-WMAH-230D25-O

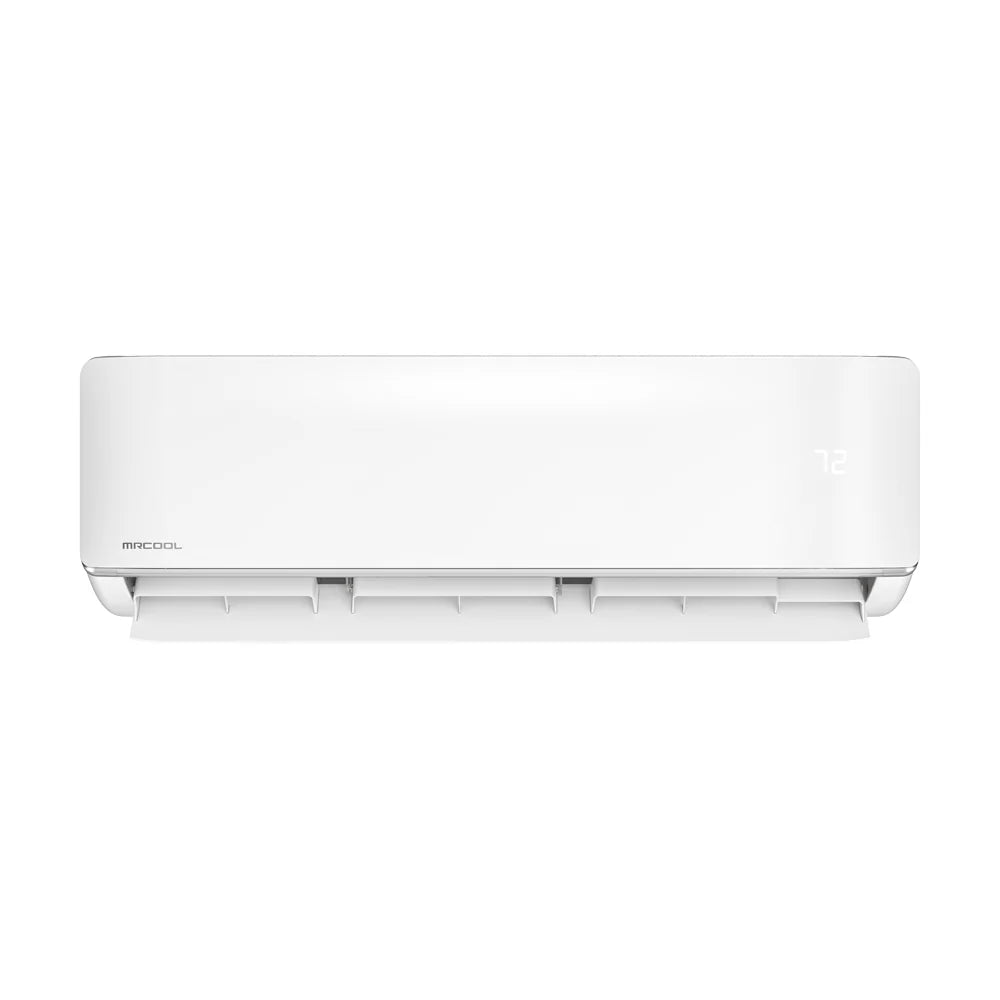

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V with DIYPRO Cable, DIY-24-HP-WMAH-230D25-O

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V with DIYPRO Cable, DIY-24-HP-WMAH-230D25-O

Authorized Dealer
In stock, ready to ship

Regular price $965.00 USD
Regular price $1,287.00 USD Sale price $965.00 USD
Sale Sold out

Why Buy From Us?

Lowest Prices
FREE EXPRESS SHIPPING
Warranty Included
Account Rep — (844) 777-0683
No Sales Tax*

*Excluding Wyoming

View full details
MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V with DIYPRO Cable, DIY-24-HP-WMAH-230D25-O
$965.00 $1,287.00

Estimated Delivery Timeline

Order Placed

Ships Out

Delivered

Need help choosing a Product?

Call (844) 777-0683

Speak with a product expert in seconds.

💰 Exclusive Volume Discounts — Save up to $3000 on Your Order!

$0 – $5,000
5% OFF
$5,000 - $10,000
7% OFF
$10,000 - $25,000
11% OFF
Description

Introducing the 5th Gen MRCOOL® DIY® 24K BTU Single Zone Mini-Split Air Handler for year-round heating and cooling in spaces 750 to 1,000 sq. ft. Customize comfort with wireless remote, SmartHVAC app, or voice commands. Industry-leading warranty for reliable, energy-efficient performance.

  • DIY Installation: Easy, tool-free setup with no prior experience required.
  • DIY® QuickConnect® Line Set: Pre-charged with R-454B refrigerant for quick and vacuum-free installation.
  • Environmentally Friendly Refrigerant: R-454B refrigerant has a lower Global Warming Potential (GWP) than older refrigerants like R-410A, reducing environmental impact while improving energy efficiency.
  • DIYPRO® Cable: Eliminates the need for electrical conduit, offering enhanced durability against outdoor elements and wildlife.
  • Wireless Control Options: Use the included remote, SmartHVAC app (Apple and Android), or voice commands via Amazon Alexa and Google Assistant.
  • Follow Me Function: Maintains consistent comfort by adjusting airflow based on the remote’s location.
  • Dry Mode: Acts as a dehumidifier to reduce excess moisture and improve indoor air quality.
  • Industry-Leading Warranty: Limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty.
  • Certified Quality: Intertek listed 5031495 for reliable performance and safety.



SPECIFICATIONS & DIMENSIONS
Dimensions & Weight
Dimensions 42.52 W" x 8.90 D" x 13.19 H"
Mount Type Wall
Weight 35.49 lbs / 16.1 kg
Capacity & Performance
Cooling Capacity 23,000 BTU
EER2 12.7
SEER2 22.7
Heating Capacity 23,000 BTU
HSPF2-4 9.5
HSPF2-5 7.1
Coverage Area 750 to 1,000 sq ft.
Indoor Noise Level (Hi/Mi/Lo) 54.0/48.0/43.0/33.5/20.0 dB(A)
Number of Speeds 5
Electrical Requirements
Voltage 208-230V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15A
Min Circuit Ampacity 3A
Refrigerant & Piping
Refrigerant Type R-454B
Liquid Line Size 3/8"
Suction Line Size 5/8"
Features
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes
Certifications & Warranty
Certifications UL Listed, ETL Listed, Energy Star Certified, AHRI Certified
Warranty 5 Years Parts
