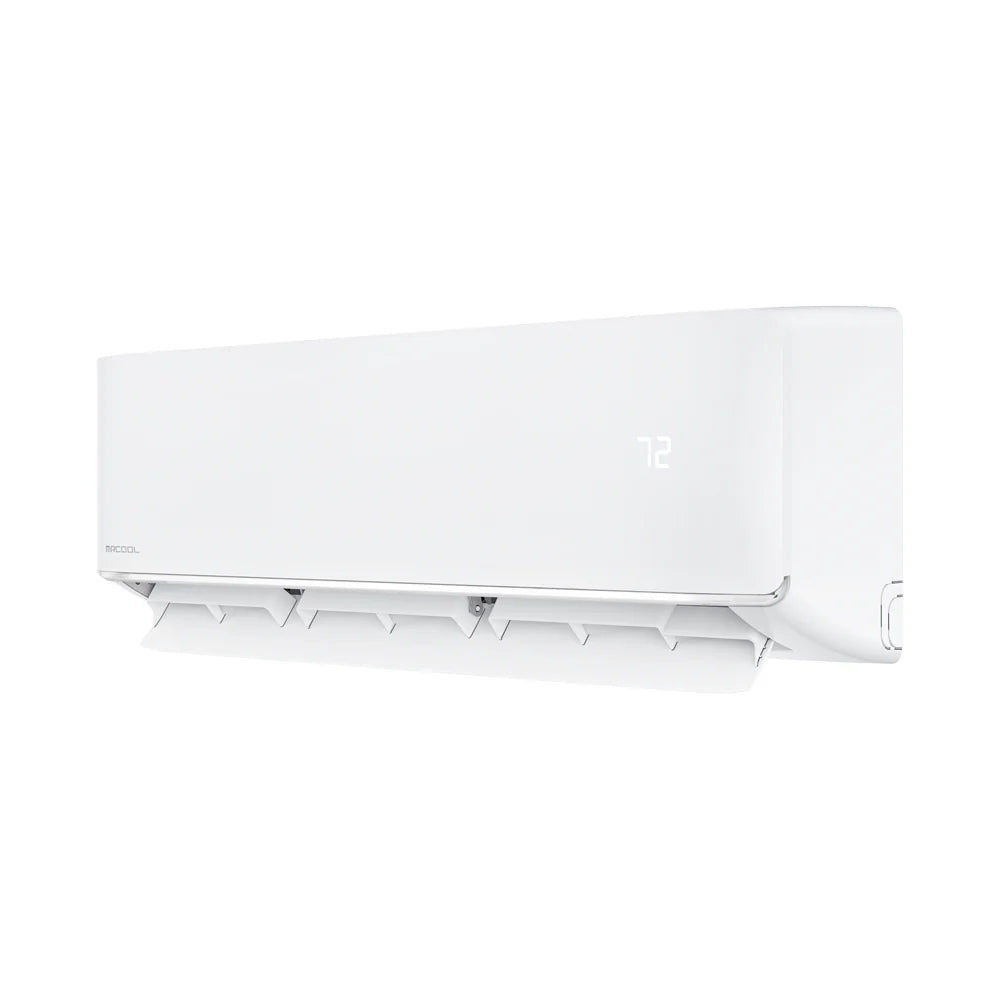

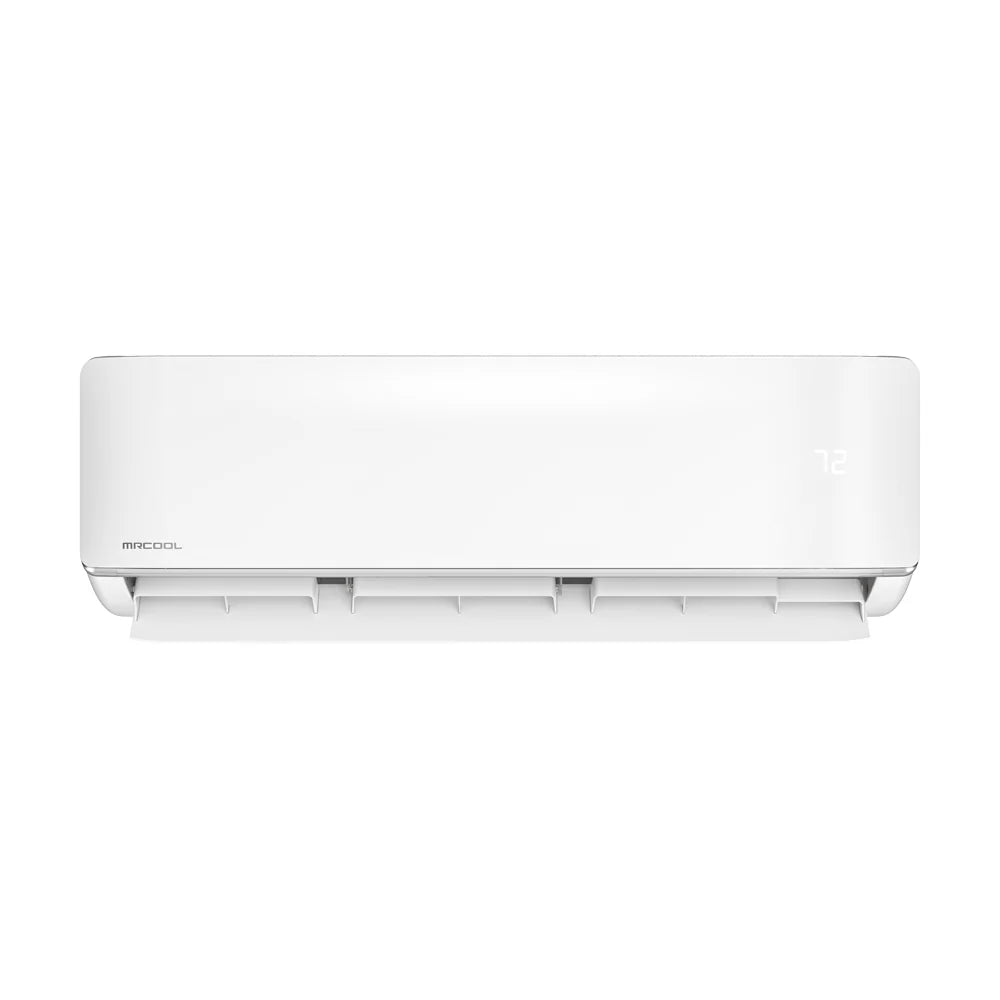

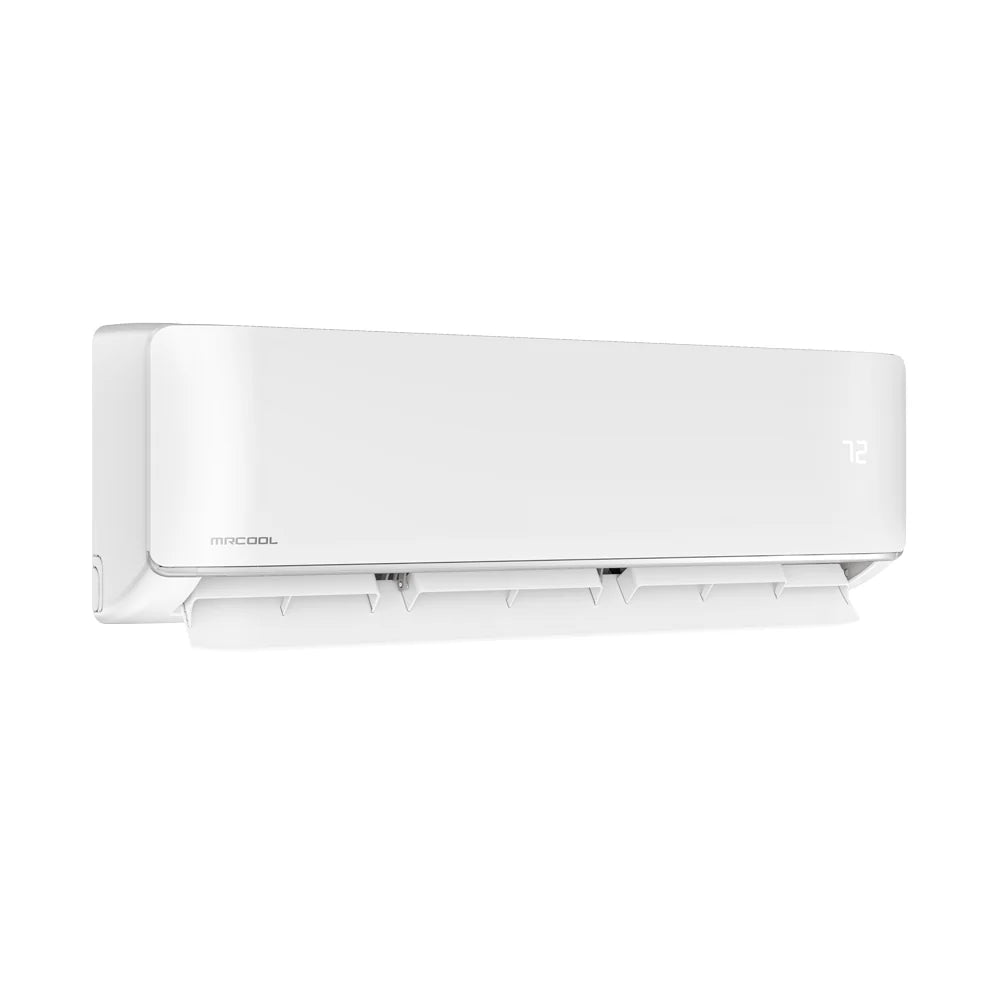

MRCOOL DIY® 5th Gen E Star 12,000 BTU Single Zone Mini Split Air Handler 115V
— Efficient Indoor Unit for Small Spaces
The MRCOOL DIY® 5th Gen 12,000 BTU Single Zone Mini Split Air Handler is engineered for easy DIY installation and reliable year-round heating and cooling in spaces from 350 to 500 sq. ft. Designed to pair seamlessly with the MRCOOL DIY® outdoor condenser, this air handler delivers advanced comfort features, wireless control options, and energy-efficient operation on standard 115V power.
Key Features for HVAC Professionals and DIY Installers:
- DIY Installation: Tool-free, straightforward setup requiring no prior HVAC experience, reducing installation time and costs.
- Compatible with DIY® QuickConnect® Line Set: Works with pre-charged R-454B refrigerant line sets for vacuum-free, fast connection and startup.
- Environmentally Friendly Refrigerant: Supports R-454B refrigerant, which has a lower Global Warming Potential (GWP) than R-410A, reducing environmental impact while enhancing efficiency.
- Durable DIYPRO® Cable: Eliminates the need for electrical conduit; engineered for durability against outdoor elements and wildlife interference.
- Wireless Control Options: Operate via included remote, SmartHVAC app (Apple and Android compatible), or voice commands through Amazon Alexa and Google Assistant.
- Follow Me Function: Adjusts airflow based on the remote’s location to maintain consistent comfort throughout the room.
- Dry Mode: Acts as a dehumidifier to reduce excess moisture, improving indoor air quality and occupant comfort.
- Industry-Leading Warranty: Includes a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty for peace of mind.
- Certified Quality: Intertek listed (5031495), ensuring compliance with safety, reliability, and performance standards.
The MRCOOL DIY® 5th Gen 12,000 BTU Single Zone Mini Split Air Handler delivers efficient, reliable, and easy-to-install indoor climate control for small spaces, combining professional-grade performance with DIY convenience on 115V power.
| Dimensions & Weight | |
|---|---|
| Dimensions | 31.57 W" x 7.44 D" x 11.69 H" |
| Mount Type | Wall |
| Weight | 24.91 lbs / 11.3 kg |
| Capacity & Performance | |
| Cooling Capacity | 12,000 BTU |
| EER2 | 12.5 |
| SEER2 | 23.5 |
| Heating Capacity | 12,000 BTU |
| HSPF2-4 | 10.2 |
| HSPF2-5 | 7.6 |
| Coverage Area | 350 to 500 sq ft. |
| Indoor Noise Level (Hi/Mi/Lo) | 43.0/39.5/33.5/24.0/18.0 dB(A) |
| Number of Speeds | 5 |
| Electrical Requirements | |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Features | |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Certifications & Warranty | |
| Certifications | UL Listed, ETL Listed, Energy Star Certified, AHRI Certified |
| Warranty | 5 Years Parts |
