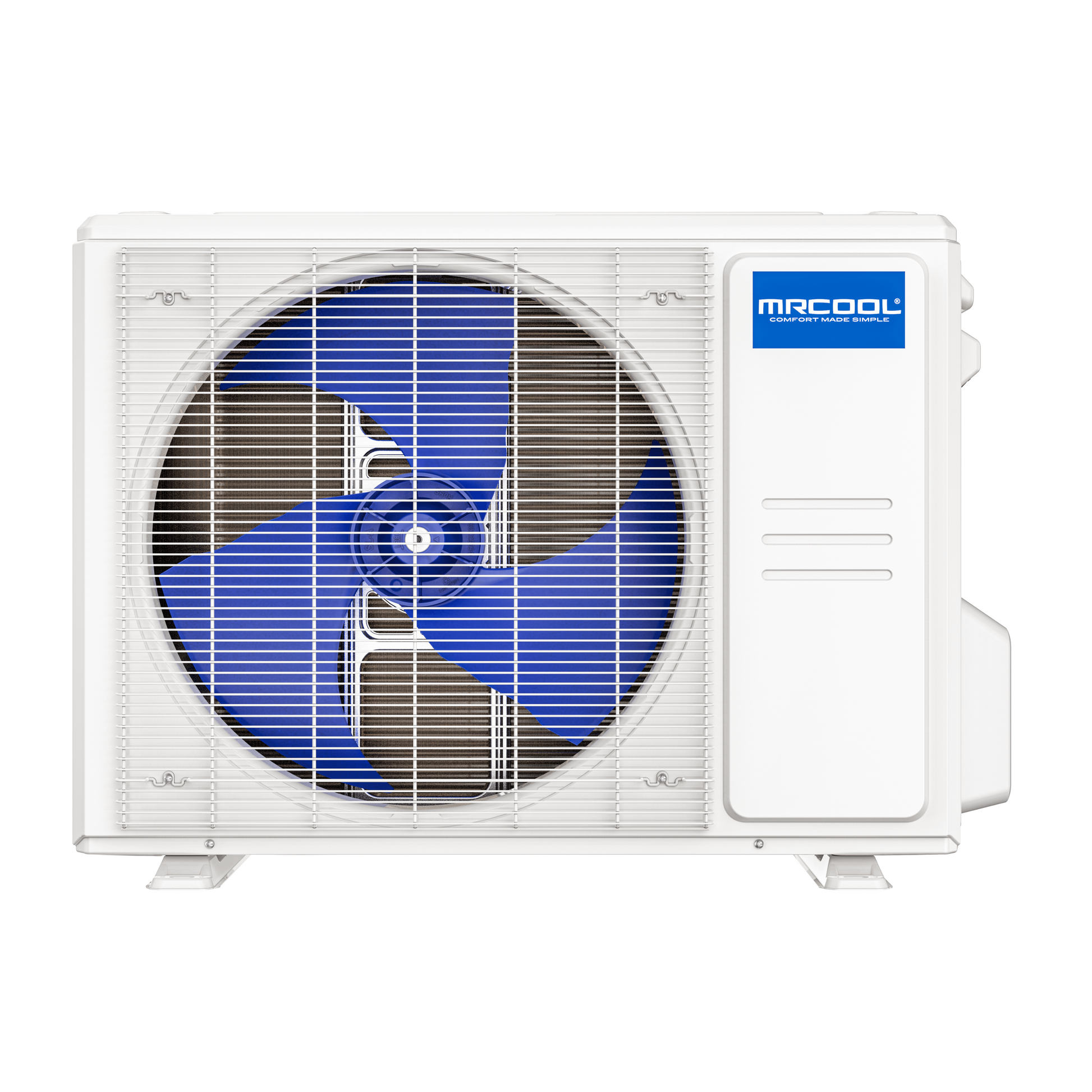

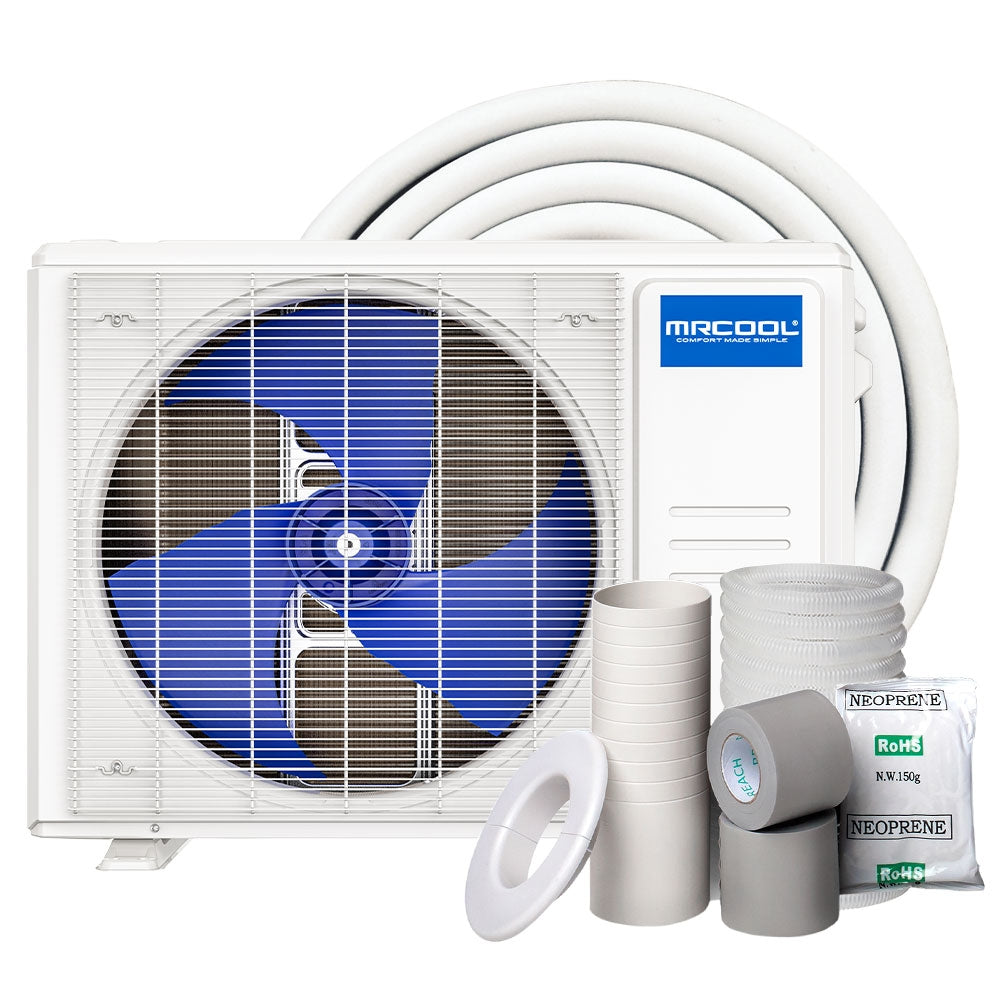

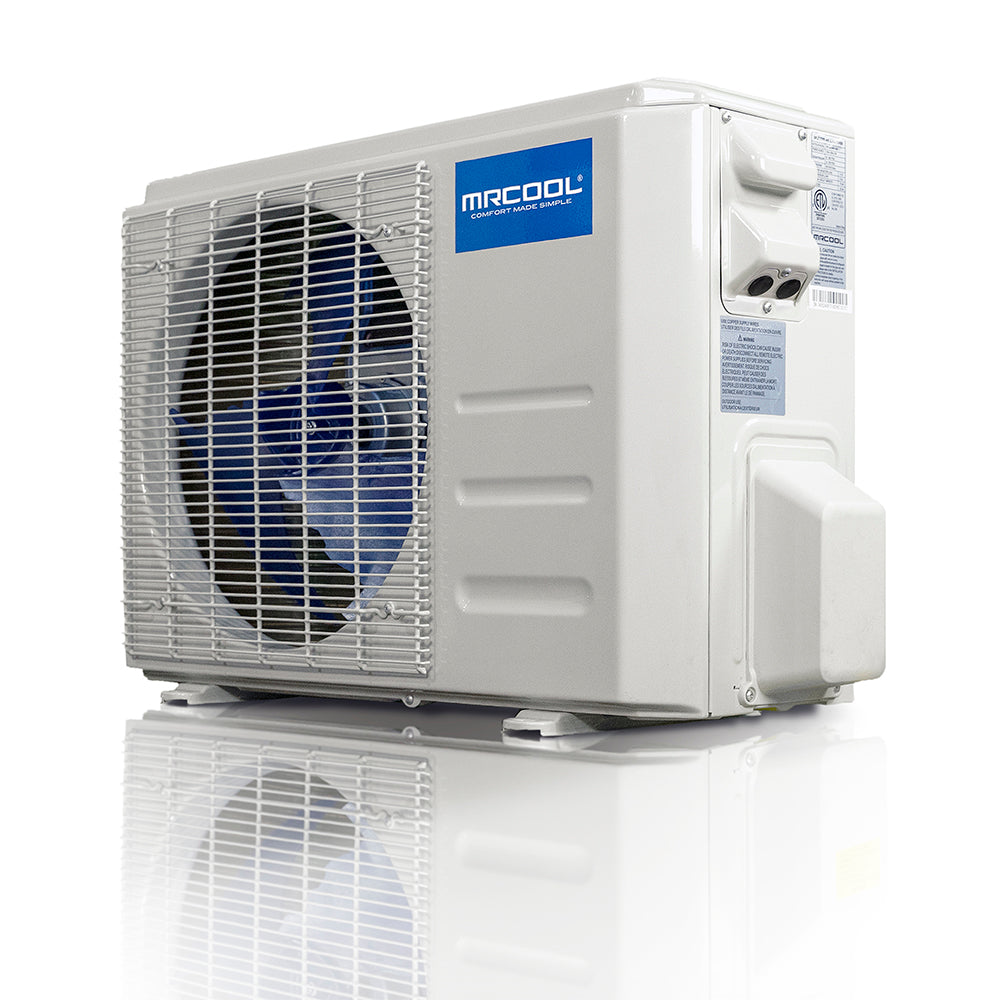

MRCOOL 5th Gen Advantage 12,000 BTU condenser delivers efficient climate control for spaces up to 500 sq. ft. This ductless system features eco-friendly R-454B refrigerant, impressive SEER2 rating of 21.3, and built-in Wi-Fi control. Includes 16ft line set and corrosion-resistant Gold Fin® condenser. Professional HVAC installation required. Ideal for year-round comfort with minimal energy consumption.
| DIMENSIONS | |
|---|---|
| Condenser Dimensions | 30.12" W x 11.93" D x 21.85" H |
| Condenser Weight | 59.08 lbs |
| CAPACITY & PERFORMANCE | |
| Zone Capacity | 1 |
| Cooling Capacity | 12,000 BTU |
| Outdoor Operating Temperature (Cooling) | 5°F - 122°F |
| EER2 | 10.8 |
| SEER2 | 21.3 |
| Heating Capacity | 12,000 BTU |
| Outdoor Operating Temperature (Heating) | 5°F - 75°F |
| HSPF2-4 | 9.1 |
| HSPF2-5 | 7 |
| Coverage Area | Up to 500 sq ft. |
| Outdoor Noise Level | 54.0 dB(A) |
| ELECTRICAL REQUIREMENTS | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 13A |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 24.69 oz |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Max Line Set Length | 82 ft. |
| FEATURES | |
| Inverter | DC |
| Compressor Type | Rotary |
| CERTIFICATIONS & WARRANTY | |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty | 1-year parts, 2-year compressor, 1-year remote warranty; optional Lifetime compressor coverage with MRCOOL® Care enrolment. |
