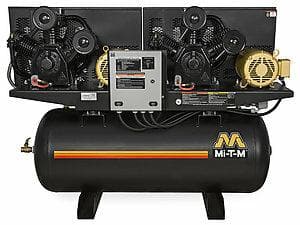

Mi‑T‑M ADD‑23110‑120H

120‑Gallon Two‑Stage Electric Duplex Air Compressor | Horizontal | Industrial Production Air

High‑output, high‑reliability compressed air for demanding service shops and industrial facilities.

The Mi‑T‑M ADD‑23110‑120H is a heavy‑duty 120‑gallon, two‑stage electric duplex air compressor engineered for operations where compressed air is a critical utility. With an impressive 68.4 CFM @ 175 PSI, dual pumps, and industrial low‑RPM motors, this system is designed to maximize production, reduce downtime, and support multiple high‑demand air tools simultaneously.

The duplex configuration with automatic alternating control balances wear between compressors while providing built‑in redundancy—ideal for high‑volume automotive, fleet, and industrial applications.

Why Choose the ADD‑23110‑120H?

✅ 68.4 CFM @ 175 PSI – Supports large shops and multiple workstations
✅ Duplex Two‑Stage Design – Redundancy and extended equipment life
✅ 120‑Gallon ASME Receiver – Large air reserve for peak demand
✅ Industrial Low‑RPM Motors – Cooler operation and long service life
✅ Automatic Alternating Control – Balanced usage and reliability

Designed for Continuous Industrial Operation

This compressor is ideal for:

• Automotive and truck service centers
• Manufacturing and fabrication facilities
• Fleet maintenance shops
• Industrial production lines
• Any environment where air demand is constant and critical

The duplex setup allows one pump to handle light demand or both pumps to engage automatically during high‑usage periods.

Heavy‑Duty Two‑Stage Pump System

Compressor Pump Features

• Splash‑lubricated two‑stage cast‑iron pumps
• Stainless‑steel braided discharge hoses
• Large canister intake filters with silencers
• Oil level sight indicators
• Pump speed: 990 RPM

Two‑stage compression ensures higher pressure, cooler air, and improved efficiency, making it ideal for continuous‑duty applications.

Industrial Motors & Duplex Controls

• 10.0 HP total system output
• Industrial low‑RPM motors
• Magnetic starters with thermal overload protection
• 3‑position selector switch:
  • Compressor 1 (lead pump)
  • Automatic alternating (lead/lag)
  • Compressor 2 (lead pump)

Heavy‑Duty Tank & Frame Construction

• ASME‑coded 120‑gallon horizontal receiver tank
• Powder‑coated finish for corrosion resistance
• 3/16" base plate for vibration reduction
• Totally enclosed, powder‑coated belt guard
• Large flywheels for superior cooling

Integrated Industrial Components

• Safety valves
• Tank pressure gauge
• Hour meter
• Tank shut‑off valve
• Intake filter / silencer

Electrical Configurations Available (3‑Phase)

Specifications at a Glance

Optional Accessories & Upgrades

IX‑0001 Vibration Isolator Pads
Reduce vibration—recommended for sensitive or vehicle‑mounted installations.

IX‑0006 Electric Tank Drain
Automatically removes moisture from the receiver tank.

IX‑0032 Pneumatic Tank Drain
Air‑operated automatic condensate removal.

IX‑0034 Aftercooler
Removes up to 65% of moisture and cools discharge air to within 10°F of ambient.

IX‑0036 Low Oil Monitor
Prevents compressor startup when oil levels are too low.

Industrial Air Without Compromise

The Mi‑T‑M ADD‑23110‑120H delivers exceptional airflow, redundancy, and reliability, making it an excellent choice for high‑volume shops that rely on compressed air every minute of the day.
